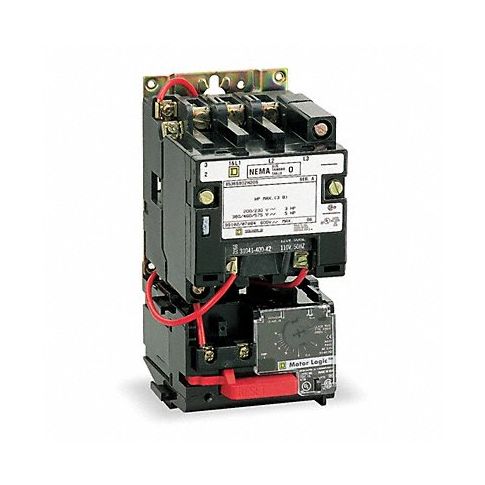

NEMA Magnetic Motor Starter MPN:8536SEO1V02H30S
Free Shipping
In Stock
Introducing the NEMA Magnetic Motor Starter from Square D, the perfect solution for starting and stopping 3-phase AC motors in your industrial settings. This versatile starter offers Class 10/20 selectable thermal protection and a solid-state overload relay for added safety and efficiency. The trip-free construction ensures that the overload relay trips even if the reset lever is blocked, while the adjustable full load amp setting provides precise control over motor performance. Ideal for use in various industries such as manufacturing, agriculture, and water treatment, this starter offers a range of benefits including improved motor protection, reduced downtime, and increased energy efficiency. With its compact design, ease of use, and proven performance, the NEMA Magnetic Motor Starter is an indispensable tool for any facility looking to optimize their motor control operations. Invest in one today and experience the difference!
Top product features:
- Class 10/20 selectable thermal protection
- Solid-state overload relay for added safety and efficiency
- Trip-free construction for reliable motor protection
Top product applications:
- Starting and stopping 3-phase AC motors in industrial settings
- Motor protection for manufacturing facilities and water treatment plants
- Energy efficiency improvement in agriculture and construction sites
Technical Specifications
- Item NEMA Magnetic Motor Starter
- Overload Relay Amp Setting 30 to 90A
- Coil Volts 120V AC
- Enclosure NEMA Rating No Enclosure
- Auxiliary Contact Form 1NO
- HP @ 3 Phase - 240V 30 hp
- HP @ 3 Phase - 480V 50 hp
- Starter Type NEMA Style
- Action Nonreversing
- Hz 50/60
- Number of Poles 3
- Amps AC 90
- NEMA Size 3
- Width 6.5 in
- Features Solid State Overload Relay
- Includes Solid state overload relay
- HP @ 3 Phase - 575V 50 hp
- HP @ 3 Phase - 208V 25 hp
- Height 11 in
- Depth 5.5 in
- Standards CSA, UL
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8536SEO1V02H30S
- MPN: 8536SEO1V02H30S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536504000
- GDS Category Name: Magnetic Starters with Electronic Overload
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121521
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Motor starter controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
