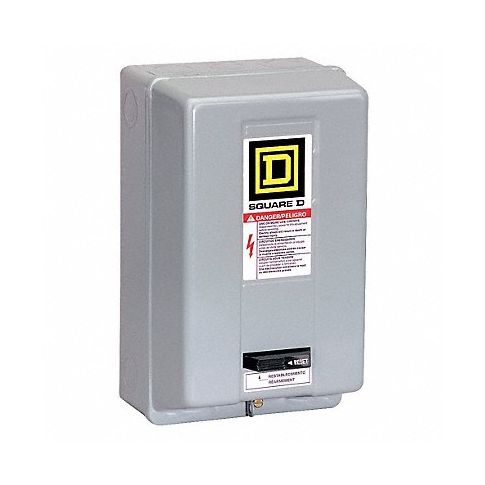

NEMA Magnetic Motor Starter MPN:8536SCG3V03H30

NEMA Magnetic Motor Starters with Solid State Overload Relays
• Class 10/20 selectable thermal protection 3-pole, 60/50 Hz, 600VAC max.
Full-voltage starters start and stop 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Overload relay has heaterless construction and adjustable full load amp setting. Normally open holding circuit contact allows 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing quickly extinguishes any arcing.
UL Listed and CSA Certified.

Technical Specifications

• Item NEMA Magnetic Motor Starter
• Overload Relay Amp Setting 9 to 27A
• Coil Volts 240V AC
• Enclosure NEMA Rating 1
• Auxiliary Contact Form 1NO
• HP @ 3 Phase - 240V 7 1/2 hp
• HP @ 3 Phase - 480V 10 hp
• Starter Type NEMA Style
• Action Nonreversing
• Hz 50/60
• Number of Poles 3
• Amps AC 27
• NEMA Size 1
• Width 5.3 in
• Features Solid State Overload Relay
• Includes Solid state overload relay
• HP @ 3 Phase - 575V 10 hp
• HP @ 3 Phase - 208V 7 1/2 hp
• Height 10 in
• Depth 6 in
• Standards CSA, UL
