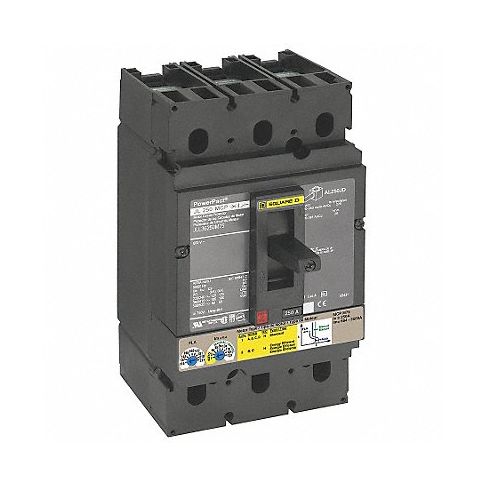

Circuit Breaker 250A 3P 600VAC JJ MPN:JJL36250M75
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5ENP2
Circuit Breaker 250A 3P 600VAC JJ
Protect your motor control center with Square D's circuit breakers rated at 250A and 600VAC, designed to handle excessive current flows while maintaining protection against short circuits. The molded case design offers enhanced durability and convenience, making it the perfect choice for industrial applications. The adjustable full load amp rating ensures your motors stay protected even under varying loads, while the high capacity interrupt rating of 100kA provides maximum security. Built with the latest technology, these circuit breakers come with trip devices that provide reliable and prompt operation in case of a fault. Invest in Square D's 250A 3P 600VAC JJ Circuit Breaker to keep your motors and motor control centers safe and secure.
Top product features:
- Rated at 250A and 600VAC
- Molded case design for durability and convenience
- Adjustable full load amp rating for motors of varying loads
Top product applications:
- Protection against short circuits in motor control centers
- Use with NEMA and IEC motor starters for added circuit protection
- Application in industrial settings requiring molded case circuit breakers
Square D motor circuit protectors are rated up to 75A and 347VAC and interrupt excessive current flows to protect motor control centers from short circuits. They can be used with NEMA and IEC motor starters, overload relays, and contactors to offer more circuit protection. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 250 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 100kA at 240V AC
- Series JJ
- High Amp Trip Setting 2,500 A
- Low Amp Trip Setting 684 A
- Circuit Breaker Type Motor Circuit Protector
- Number of Poles 3
- DC Voltage Rating 250V DC
- Terminal Connection Line/Load Lug
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Instantaneous
- Phase Connection ABC
- Frame Size 250A/JJ
- Circuit Breaker Mounting Style Free Standing
- Height 7.52 in
- Width 4.12 in
- Depth 5.0 in
- Min. Wire Size 3 AWG
- Max. Wire Size 350 MCM
- Circuit Breaker Actuator Toggle
- Standards CCC, CE, IEC, UR
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: JJL36250M75
- MPN: JJL36250M75
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 32101625
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Integrated circuits
- UNSPSC Commodity ID: 25
- UNSPSC Commodity Name: Motor drive or control integrated circuits
- UNSPSC Family ID: 10
- UNSPSC Family Name: Printed circuits and integrated circuits and microassemblies
- UNSPSC Segment ID: 32
- UNSPSC Segment Name: Electronic Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
