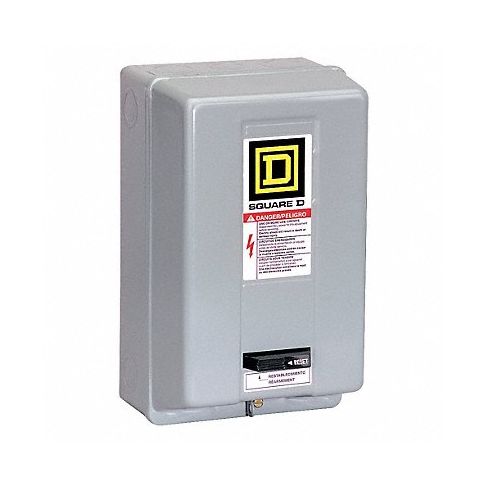

NEMA Magnetic Motor Starter MPN:8536SBG2V08H30
Free Shipping
In Stock
Introducing the NEMA Magnetic Motor Starter from Square D - the perfect solution for controlling and protecting your 3-phase AC motors. This starter features a selectable thermal protection of Class 10/20, providing reliable and adjustable overload protection. With its full-voltage starters and manual push-to-test and visible trip indicator, this device is easy to use and monitor. Its trip-free construction ensures that the overload relay will trip even if the reset lever is blocked or in the reset position, providing extra safety for your equipment. Additionally, the adjustable full load amp setting allows you to customize the protection according to your specific needs. The NEMA Magnetic Motor Starter is perfect for a wide range of applications in industrial and commercial settings, including but not limited to: textile mills, steel plants, food processing facilities, and water treatment centers. Choose Square D's NEMA Magnetic Motor Starter and enjoy reliable motor control and protection!
Top product features:
- Class 10/20 selectable thermal protection
- Full-voltage starters start and stop 3-phase AC motors
- Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position
Top product applications:
- Use in industrial and commercial settings where 3-phase AC motors are used
- Application in textile mills to control and protect motors
- Use in water treatment centers for motor control and protection
Technical Specifications
- Item NEMA Magnetic Motor Starter
- Overload Relay Amp Setting 6 to 18A
- Coil Volts 208V AC
- Enclosure NEMA Rating 1
- Auxiliary Contact Form No Auxiliary Contacts
- HP @ 3 Phase - 240V 3 hp
- HP @ 3 Phase - 480V 5 hp
- Starter Type NEMA Style
- Action Nonreversing
- Hz 60
- Number of Poles 3
- Amps AC 18
- NEMA Size 0
- Width 5.3 in
- Features Solid State Overload Relay
- Includes Solid state overload relay
- HP @ 3 Phase - 575V 5 hp
- HP @ 3 Phase - 208V 3 hp
- Height 10 in
- Depth 6 in
- Standards CSA, UL
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8536SBG2V08H30
- MPN: 8536SBG2V08H30
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536504000
- GDS Category Name: Magnetic Starters with Electronic Overload
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121521
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Motor starter controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC Category: Starters and Contactors
