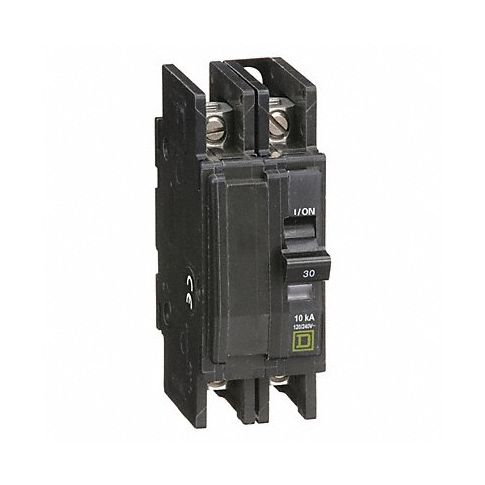

Circuit Breaker 30A 120/240V 2P MPN:QOU230
Free Shipping
In Stock
Introducing the Square D QOU series circuit breakers, versatile devices designed to meet your electrical needs! Surface-, flush-, or DIN rail-mountable in panelboards and load centers, they free up space while providing top-notch performance. Engineered to detect overloads and switch on AC and DC electrical systems, these miniature circuit breakers offer peace of mind with their reliable protection against power surges. Capable of handling up to 30 amps, they are perfect for a variety of applications ranging from residential to commercial settings. With 2 poles and standard circuit breaker type, they deliver the reliability you need for your electrical system. Upgrade to Square D QOU series circuit breakers and safeguard your electrical equipment today!
Top product features:
- Surface-, flush-, or DIN rail-mounted capability for easy installation
- Detects overloads and switches on both AC and DC electrical systems
- Handles up to 30 amps for reliable protection of electrical equipment
Top product applications:
- Home electrical systems
- Office and commercial buildings electrical networks
- Manufacturing plants and industrial facilities electrical grids
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 30 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Surface/DIN Rail
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOU
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Air Conditioning and Refrigeration Equipment, Heating
- Terminal Connection Slotted Box Lug (Reversible Line and Load)
- Frame Size 100A/QOU
- Length 4.05 in
- Width 1.5 in
- Depth 2.95 in
- Min. Wire Size 14 AWG
- Max. Wire Size 2 AWG
- Standards CSA, IEC, UL listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOU230
- MPN: QOU230
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121603
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Miniature circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Distribution
