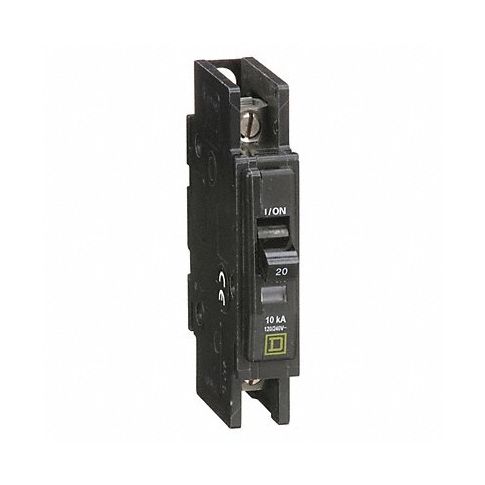

Circuit Breaker 20A 120/240V 1P MPN:QOU120
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5B970
Circuit Breaker 20A 120/240V 1P
Introducing the Square D QOU series miniature circuit breaker - your solution to efficient and reliable power management! These versatile breakers can be mounted in panelboards or load centers, freeing up space wherever it's needed. With a capacity of 20 Amps and an AC voltage rating of 120/240V, these breakers are ideal for use in residential and commercial settings where simple circuit protection is required. Plus, their ability to switch on both AC and DC electrical systems makes them perfect for applications that require flexibility. Say goodbye to overloaded circuits and hello to peace of mind with Square D's QOU series miniature circuit breaker!
Top product features:
- Surface-, flush-, or DIN rail-mounting options
- AC voltage rating of 120/240V
- Standard circuit breaker type
Top product applications:
- Home electrical circuits
- Light commercial loads
- Backup power system
These QOU series miniature circuit breakers can be surface-, flush-, or DIN rail-mounted in panelboards and load centers to free up space wherever it's needed. They interrupt currents when overloads are detected in the circuit and can switch on both AC and DC electrical systems.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 1
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Surface/DIN Rail
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOU
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Air Conditioning and Refrigeration Equipment, Heating
- Terminal Connection Slotted Box Lug (Reversible Line and Load)
- Frame Size 100A/QOU
- Length 4.05 in
- Width 0.75 in
- Depth 2.95 in
- Min. Wire Size 14 AWG
- Max. Wire Size 2 AWG
- Standards CSA, IEC, UL listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOU120
- MPN: QOU120
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121603
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Miniature circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00DKYOGHG, B00R8MSFHI
Product info last updated on November 17, 2023 12:17pm UTC Category: Distribution
