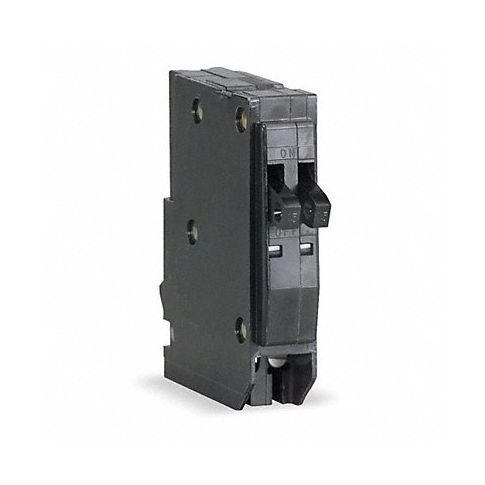

Circuit Breaker 15/20A 120/240V 1P MPN:QOT1520
Free Shipping
In Stock
Introducing Square D's QOT Circuit Breaker - the ultimate solution for safe and efficient electrical wiring in both residential and commercial settings! These versatile miniature circuit breakers come in a convenient tandem design, offering two separate circuits in one compact body. Easy plug-in installation saves time and effort compared to bolt-on and unit-mount breakers. Plus, they are perfect for spaces where DIN rail or bolts may not be available. Their space-saving design allows for better organization of the panelboard or load center without sacrificing power protection. The QOT Circuit Breaker is ideal for use in applications such as lighting, appliances, and office equipment. By providing low-level fault protection, you can rest assured that your electrical system is safe from potential issues like short circuits, overloads, or ground faults. So go ahead, protect your wiring and devices with Square D's QOT Circuit Breaker - the ultimate combination of simplicity, convenience, and safety!
Top product features:
- Tandem circuit breaker: allows for two separate circuits in one slot
- Plug-in installation: easier than bolt-on or unit-mount options
- Interrupts currents when low-level faults are detected: enhances safety by preventing potential issues
Top product applications:
- Electrical wiring in residential and commercial settings
- Overload protection for small appliances and lights
- Organization and space-saving in panelboards and load centers
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 15/20 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Tandem
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOT
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Pressure Plate
- Frame Size 100A/QO
- Length 3.22 in
- Width 0.75 in
- Depth 2.91 in
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 8 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOT1520
- MPN: QOT1520
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121602
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Magnetic circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC Category: Distribution
