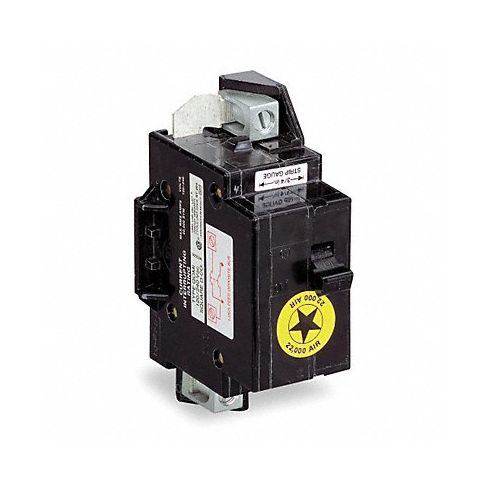

Circuit Breaker 70A Bolt On 120/240V 2P MPN:QOM70VH
SKU
226-CXG-5B777
Circuit Breaker 70A Bolt On 120/240V 2P
The Square D QOM series main circuit breaker is designed to protect your electrical system from damage caused by short circuits and overcurrents. Its lug orientation allows for straight-in wiring through bus bars, eliminating the need for pigtail wires and organizing the load center for maximum efficiency. With a 70A rating and 120/240V AC voltage rating, this circuit breaker is perfect for protecting larger installations and high-current loads. The horizontal handle allows for top or bottom feed applications to suit your needs. Save yourself the hassle and potential danger of dealing with electrical issues by adding this reliable QOM series main circuit breaker from Square D to your load center today!
Top product features:
- Lug orientation for straight-in wiring through bus bars
- Horizontal handle for top or bottom feed applications
- Miniature circuit breaker design
Top product applications:
- Home electrical wiring systems
- Commercial buildings and offices
- Industrial complexes and factories
These QOM series main circuit breakers interrupt overcurrents and short circuits to protect QO load centers with convertible mains from electrical damage. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center. They also have a horizontal handle to allow for top or bottom feed applications.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 70 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Main Breaker
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOM
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Homeline Load Center, QO Load Center
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 5.09 in
- Width 3.47 in
- Depth 5.0 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOM70VH
- MPN: QOM70VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
