Circuit Breaker 125A Bolt On 120/240V 2P MPN:QOM2125VH
Free Shipping
In Stock

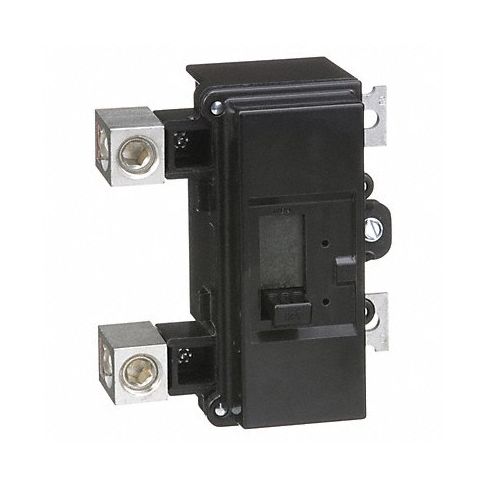

Introducing the Square D Circuit Breaker 125A Bolt On 120/240V 2P, the perfect solution for protecting your home or office from electrical damage. This miniature circuit breaker interrupts overcurrents and short circuits to safeguard against electrical fires and other hazards. Its lug orientation allows for easy wiring through bus bars, eliminating the need for pigtail wires and increasing organization in your load center. With a capacity of 125 amps and an AC voltage rating of 120/240V, this circuit breaker is designed to handle residential or commercial applications with ease. Additionally, its horizontal handle allows for top or bottom feed applications, making installation a breeze. Upgrade your electrical system today with the Square D Circuit Breaker 125A Bolt On 120/240V 2P and experience peace of mind in knowing you're protected against electrical hazards.
Top product features:
- Lug orientation for easy wiring through bus bars
- Horizontal handle for top or bottom feed applications
- Interrupts overcurrents and short circuits for electrical protection
Top product applications:
- Use as a main circuit breaker for QO load centers
- Protect electrical wiring from overcurrents and short circuits
- Connect to bus bars for easy installation
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 125 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Main Breaker
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOM
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Homeline Load Center, QO Load Center
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 5.6 in
- Width 3.6 in
- Depth 5.07 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOM2125VH
- MPN: QOM2125VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:15pm UTC Category: Distribution
