Circuit Breaker 100A Bolt On 120/240V 2P MPN:QOM2100VH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5B775

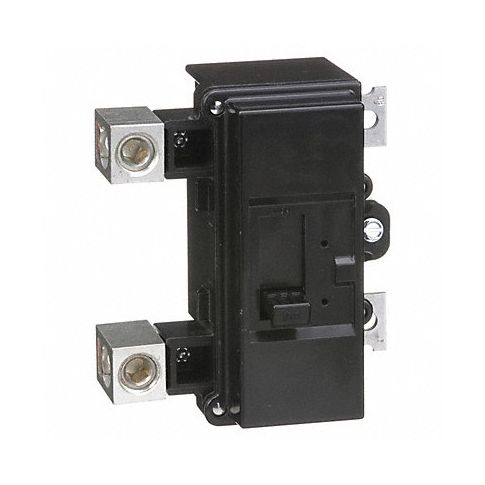

Circuit Breaker 100A Bolt On 120/240V 2P
The Square D Circuit Breaker 100A Bolt On 120/240V 2P is an essential component for any QO load center with convertible mains, providing powerful protection against overcurrents and short circuits. With a horizontal handle, it allows for top or bottom feed applications and lug orientation for straight-in wiring through bus bars. This breaker is ideal for use in homes, small businesses, and other residential settings, ensuring optimal electrical safety and performance. Its versatile design makes it suitable for a range of applications, including protecting equipment, appliances, and lighting systems. Invest in the Square D Circuit Breaker 100A Bolt On 120/240V 2P today to safeguard your electrical system and minimize potential risks.
Top product features:
- Lug orientation for straight-in wiring through bus bars
- Horizontal handle for top or bottom feed applications
- Protection against overcurrents and short circuits
Top product applications:
- Protect electrical systems in homes and small businesses
- Safeguard equipment and appliances from power surges or overloads
- Minimize the risk of electrical fires or damage to electrical components
These QOM series main circuit breakers interrupt overcurrents and short circuits to protect QO load centers with convertible mains from electrical damage. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center. They also have a horizontal handle to allow for top or bottom feed applications.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 100 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Main Breaker
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOM
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Homeline Load Center, QO Load Center
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 5.6 in
- Width 3.6 in
- Depth 5.07 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOM2100VH
- MPN: QOM2100VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
