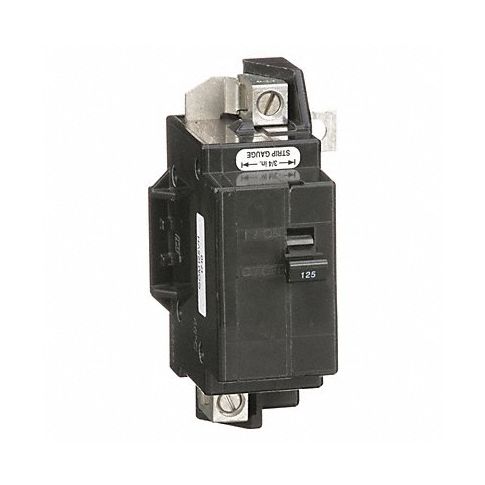

Circuit Breaker 125A Bolt On 120/240V 2P MPN:QOM125VH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5B774
Circuit Breaker 125A Bolt On 120/240V 2P
The Square D QOM series main circuit breakers are designed for optimal protection of QO load centers with convertible mains against short circuits and overcurrents. The horizontal handle allows for convenient installation in top or bottom feed applications while the bus bar wiring saves time and effort by eliminating pigtail wires. Rated at 125A, these breakers offer robust performance and are ideal for use in residential and commercial settings. Their compact size and ease of use make them a must-have for anyone looking to safeguard their electrical systems from damage.
Top product features:
- Bus bar wiring: Eliminates the need to pigtail wires and helps organize the load center.
- Horizontal handle: Allows for top or bottom feed applications.
- Robust performance: Rated at 125A for optimal protection of QO load centers.
Top product applications:
- Protect QO load centers in residential settings.
- Safeguard electrical systems in commercial buildings.
- Secure and organize wiring configurations in load centers.
These QOM series main circuit breakers interrupt overcurrents and short circuits to protect QO load centers with convertible mains from electrical damage. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center. They also have a horizontal handle to allow for top or bottom feed applications.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 125 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Main Breaker
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOM
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Homeline Load Center, QO Load Center
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 5.09 in
- Width 3.47 in
- Depth 5.0 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOM125VH
- MPN: QOM125VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
