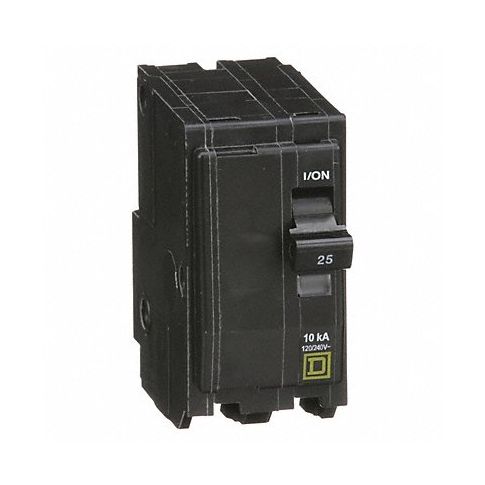

Circuit Breaker 25A Plug In 120/240V 2P MPN:QO225
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5B741
Circuit Breaker 25A Plug In 120/240V 2P
Introducing Square D's QO circuit breaker, a game-changer in electrical installations. This innovative breaker features a plug-in design that makes it easier to install than traditional bolt-on or unit-mount breakers. The QO series offers two poles for added protection and is designed for residential and light commercial applications. With a 25A rating, this breaker is perfect for handling the power needs of common household appliances and electronics. Its compact design helps organize your panelboard or load center, and its interruption of low-level faults ensures safety in your home or office. Make the smart choice with Square D's QO circuit breaker, a reliable solution for your electrical needs.
Top product features:
- Plug-in design for easy installation.
- 2 poles for added protection.
- Compact design to organize panelboards and load centers.
Top product applications:
- Residential electrical installations for circuits up to 25 amperes.
- Protection for small appliances and electronics.
- Home offices or workshops that require additional protection in specific locations.
These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 25 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QO
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Pressure plate
- Frame Size 100A/QO
- Length 3.0 in
- Width 1.5 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO225
- MPN: QO225
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B002FYF194
Product info last updated on November 17, 2023 12:17pm UTC Category: Distribution
