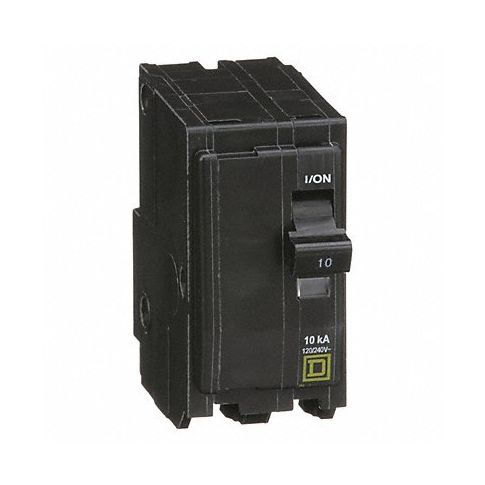

Circuit Breaker 10A Plug In 120/240V 2P MPN:QO210
Free Shipping
In Stock
Introducing the QO series Miniature Circuit Breaker from Square D, perfect for safeguarding lighting fixtures and appliances in your home or small business. Designed to plug into place in NQOD and NQ panelboards as well as QO load centers without requiring DIN rail or bolts, these breakers offer a simple installation process compared to bolt-on and unit-mount breakers. With their ability to detect low-level faults and interrupt currents, you can rest assured that your electrical system is protected against power surges and hazards. The bus bars provide a secure connection to the power supply, eliminating the need for pigtail wires and promoting organization in your panelboard or load center. The 10A rating makes it suitable for handling small loads, making it a versatile addition to any electrical system. Upgrade your safety standards and protect your valuable electronics with this reliable miniature circuit breaker from Square D.
Top product features:
- Plugs into place in NQOD and NQ panelboards without DIN rail or bolts
- Interrupts currents when low-level faults are detected
- Connects to power supply through bus bars
Top product applications:
- Protecting lighting fixtures and appliances in homes and small businesses
- Use as supplemental or additional protection for critical electrical systems
- In locations where standard circuit breakers are too large or difficult to install
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 10 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QO
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Pressure plate
- Frame Size 100A/QO
- Length 3.0 in
- Width 1.5 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO210
- MPN: QO210
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
