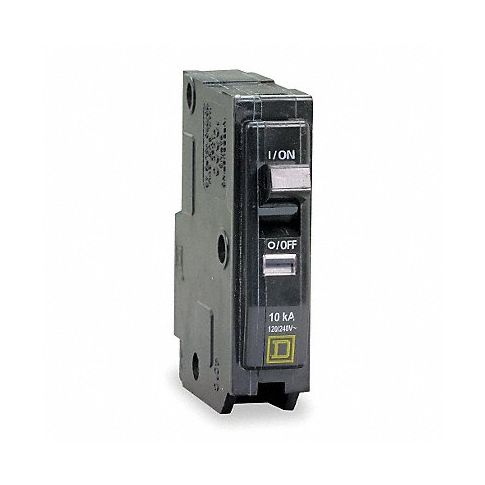

Circuit Breaker 35A Plug In 120/240V 1P MPN:QO135
Free Shipping
In Stock
Introducing Square D's Circuit Breaker 35A Plug In 120/240V 1P - a game-changer in electrical protection for your home or office. With its convenient plug-in design and QO series miniature circuit breaker technology, installation has never been easier, thanks to no DIN rail or bolts required. This breaker is ideal for protecting circuits from low-level faults that could cause damage or hazards. Plus, its 35A amperage rating ensures it's perfect for powering multiple devices without straining the circuit. Perfect for use in panelboards and load centers, these circuit breakers are built to withstand the toughest conditions while keeping you safe from electrical hazards. Experience the difference of Square D's innovative QO technology - your safeguard against electrical mishaps.
Top product features:
- Plug-in design for easy installation without DIN rail or bolts
- Interrupts currents to protect from low-level faults
- Connects to power supply through bus bars
Top product applications:
- Residential use for protection of circuits in electrical panels
- Commercial use in small offices or retail spaces
- Light-duty industrial use in workshops or laboratories
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 35 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 1
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QO
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.12 in
- Width 0.75 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 8 AWG
- Max. Wire Size 2 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO135
- MPN: QO135
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC Category: Distribution
