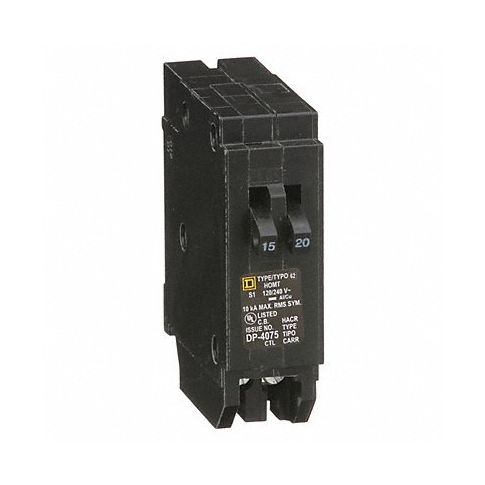

Circuit Breaker 15/20A 120/240V 1P MPN:HOMT1520
Free Shipping
In Stock
Introducing our Square D Circuit Breaker 15/20A 120/240V 1P, a versatile solution for protecting electrical circuits in your home or business. These miniature circuit breakers are designed to plug into place in Homeline load centers without any additional mounting hardware, making them quick and easy to install. They're equipped with advanced technology that automatically interrupts currents when low-level faults are detected, providing valuable protection against power surges, short circuits, and overloads. Perfect for a wide range of applications including lighting fixtures, appliances, and equipment, these circuit breakers offer the peace of mind you need to keep your electrical system running safely and efficiently. Upgrade your home or office with the quality and reliability of Square D's Circuit Breaker 15/20A 120/240V 1P today!
Top product features:
- Easy Installation The circuit breaker can be easily installed without requiring DIN rail or bolts.
- Advanced Fault Protection The breaker interrupts currents when low-level faults are detected, providing valuable protection against power surges, short circuits, and overloads.
- Bus Bar Connection Connects to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Top product applications:
- Protection for Appliances The circuit breaker can be used to protect appliances and electronic devices from power surges and short circuits, ensuring their safe operation.
- Residential Electrical Systems The breaker can be installed in residential load centers as part of the home's electrical system, providing fault protection for outlets, switches, and lights.
- Commercial Use The breaker is suitable for use in commercial settings where small circuit overloads or short circuits can occur, such as offices or retail spaces.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 15/20 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Tandem
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Homeline Load Center
- Terminal Connection Lug
- Frame Size 100A/HOM
- Length 3.13 in
- Width 2 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG
- Max. Wire Size 8 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOMT1520
- MPN: HOMT1520
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC Category: Distribution
