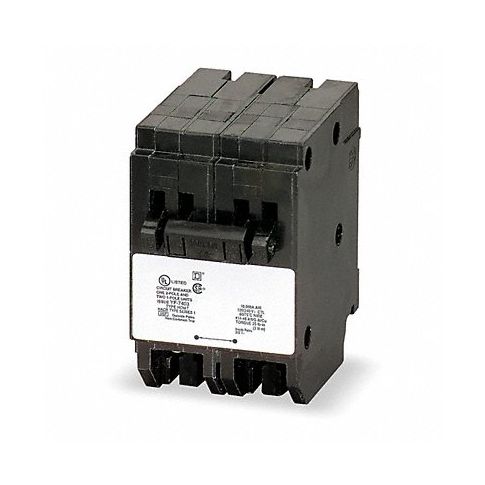

Circuit Breaker 15/30A 120/240V 2P MPN:HOMT1515230
Free Shipping
In Stock
Introducing Square D's HOM series miniature circuit breakers for Homeline load centers. Designed to provide exceptional protection from low-level faults in circuits, these breakers simplify installation with their plug-in design that eliminates the need for DIN rails or bolts. Their bus bar connections streamline power supply connections by eliminating pigtail wires and offering a clean, organized load center. With an amperage rating of 15/30 A and a versatile voltage rating of 120/240V AC, these breakers are ideal for a wide range of applications such as homes, offices, and commercial spaces. Their compact size and user-friendly design make them a smart choice for any electrical setup looking to increase safety, efficiency, and convenience.
Top product features:
- Easy installation without DIN rails or bolts
- Interrupt currents when low-level faults are detected
- Connect to power supply through bus bars for organized load center
Top product applications:
- Protect circuits and electronics in homes or offices from power surges or short circuits
- Ensure safe wiring connections without pigtails or extra bolts for faster installation
- Organize the load center and provide a clean, organized appearance in electrical setups
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 15/30 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Tandem
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Homeline Load Center
- Terminal Connection Lug
- Frame Size 100A/HOM
- Length 3.13 in
- Width 2 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOMT1515230
- MPN: HOMT1515230
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
