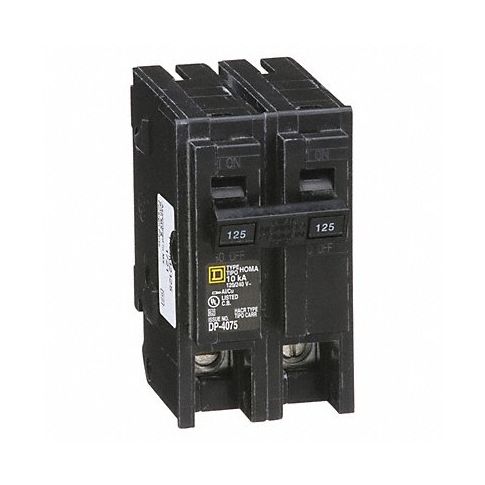

Circuit Breaker 125A Plug In 120/240V 2P MPN:HOM2125
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5B681
Circuit Breaker 125A Plug In 120/240V 2P
Introducing Square D's HOM series miniature circuit breakers - designed to make installing and maintaining electrical circuits easier than ever before! With their convenient plug-in design, these breakers eliminate the need for messy wiring and time-consuming assembly. They are ideal for use in Homeline load centers and offer up to 125 A of interrupt capacity to protect your system from low-level faults. Equipped with a 120/240V AC voltage rating, these breakers are suitable for a wide range of applications, including commercial and residential buildings. Choose Square D's HOM series miniature circuit breakers for reliable, convenient, and efficient electrical protection!
Top product features:
- Plug-in design for easy installation
- Interrupts currents at low-level faults
- Connects to power supply through bus bars
Top product applications:
- Homes and residential properties for circuit protection
- Commercial buildings for distributing power and protecting circuits
- Construction sites as temporary power sources
These HOM series miniature circuit breakers plug into place in Homeline load centers without requiring DIN rail or bolts, so they're easier to install than unit-mount or bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 125 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Homeline Load Center
- Terminal Connection Lug
- Frame Size 100A/HOM
- Length 3.13 in
- Width 2 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 2 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM2125
- MPN: HOM2125
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00ECKORVC
Product info last updated on November 17, 2023 12:18pm UTC Category: Distribution
