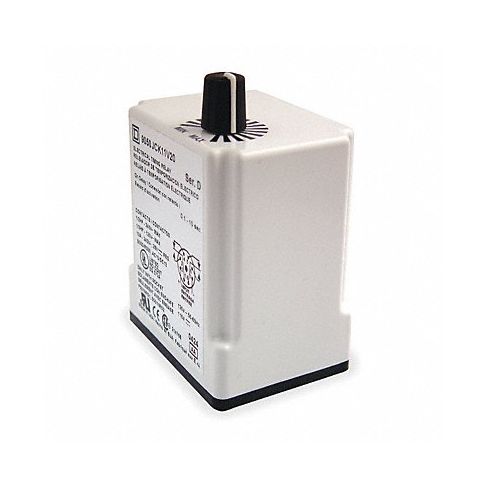

Time Delay Rlay 120VAC 10A DPDT 1.2 sec. MPN:9050JCK14V20
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5B401
Time Delay Rlay 120VAC 10A DPDT 1.2 sec.
The Time Delay Relay 120VAC 10A DPDT is an essential component for controlling electrical devices with a delay of 1.2 seconds, giving the connected load time to power up or shut down before initiating the cycle again. With an input voltage rating of 120 VAC and capacity of handling currents up to 10A, this DPDT (Double Pole Double Throw) relay provides flexible control options for lighting systems, pumps, motors and other electrical appliances that require precise time delay controls. Its compact design ensures it can be easily integrated into various applications while maintaining reliability - making the Time Delay Relay 120VAC 10A DPDT an indispensable tool for industrial, commercial or residential settings.
Buy Schneider item #9050JCK14V20 ✯ Made in the USA ✯ and sold by a Veteran-Owned Business.
Technical Specifications
- Item - Relay Single Function Timing Relay
- Function - Timing Relay On Delay
- Coil Volts 120V AC
- AC Contact Rating - Relay 10A @ 120/240V
- DC Contact Rating - Relay 10A @ 30V
- Base Type - Plug In Relay Octal
- Number of Pins - Relay 8
- Mounting - Relay Plug In
- Contact Form - Relay DPDT
- Power Consumption - Relay 2.0 VA
- Adjustment Method - Timer Rotary Knob
- Min. Time Setting - Timer 1.2 sec
- Max. Time Setting - Timer 2 min
- Contact Material Silver Alloy
- Body Height - Relay 3.39 in
- Body Width - Relay 2.4 in
- Body Depth - Relay 1.71 in
- Overall Height - Relay 4.1 in
- Electrical Connection Socket
- Socket 1EGP3, 1EGP5, 5X852
- Hz - Electrical 50 Hz, 60 Hz
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: 9050JCK14V20
- MPN: 9050JCK14V20
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Time-Delay Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121519
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Time relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
