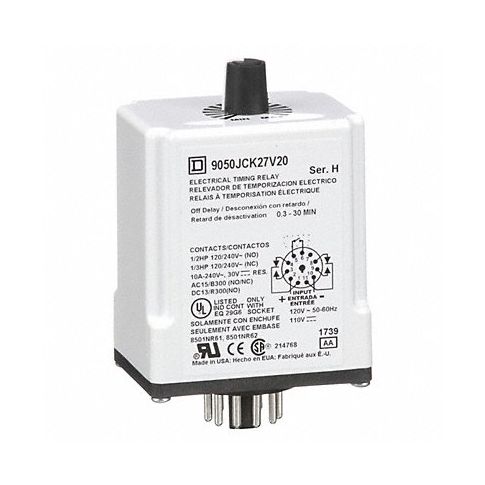

Time Delay Rlay 120VAC 10A DPDT 0.3 sec. MPN:9050JCK27V20
Free Shipping
In Stock
Schneider's Time Delay Relay is an essential component for controlling electrical power in various industrial settings. It offers a reliable timing delay function, enabling precise control over processes that require a specific time interval before activation. This single function timing relay has a versatile rating of 10A @ 120/240V and operates at 120V AC. Its compact design makes it suitable for installation in tight spaces while delivering exceptional performance, making it perfect for use in photography equipment, agricultural machinery, security systems, and more. With the 0.3-second delay function, users can ensure a safe and controlled power release, reducing the risk of unexpected electrical hazards or failures. Invest in this high-quality, reliable, and affordable Time Delay Relay today!
Top product features:
- Timing delay function
- Versatile rating of 10A @ 120/240V
- Compact design suitable for tight spaces
Top product applications:
- Security systems: The time delay feature helps prevent unauthorized access to a premise after a power outage by ensuring the electrical load remains off until the set delay time has passed.
- Photography equipment: The relay can be used in strobe lights, flash units or other camera accessories to ensure a consistent delay before firing, resulting in sharper and more precise images.
- Agricultural machinery: The relay can be integrated into irrigation systems to control the water pump's operation by turning it on when needed, helping reduce energy consumption and promote efficient farming practices.
Technical Specifications
- Item - Relay Single Function Timing Relay
- Function - Timing Relay Off Delay
- Coil Volts 120V AC
- AC Contact Rating - Relay 10A @ 120/240V
- DC Contact Rating - Relay 10A @ 30V
- Base Type - Plug In Relay Octal
- Number of Pins - Relay 11
- Mounting - Relay Plug In
- Contact Form - Relay DPDT
- Power Consumption - Relay 2.0 VA
- Adjustment Method - Timer Rotary Knob
- Min. Time Setting - Timer 0.3 sec
- Max. Time Setting - Timer 30 min
- Contact Material Silver Alloy
- Body Height - Relay 3.39 in
- Body Width - Relay 2.4 in
- Body Depth - Relay 1.71 in
- Overall Height - Relay 4.1 in
- Electrical Connection Socket
- Socket 1EGP2, 1EGP4, 6X156
- Hz - Electrical 50 Hz, 60 Hz
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: 9050JCK27V20
- MPN: 9050JCK27V20
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Time-Delay Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121519
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Time relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
