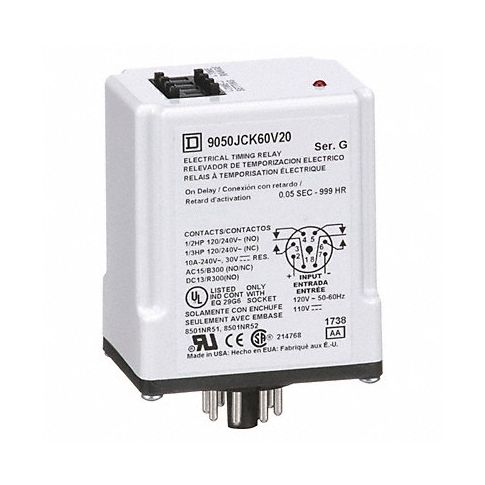

Time Delay Relay 120VAC 10A DPDT .05 sec MPN:9050JCK60V20
Free Shipping
In Stock
The Square D time delay relay is an essential device for managing electrical loads with ease and safety. Its 120V AC coil voltage ensures stable power supply to support various industrial applications. With a delayed timing function, it provides added security in operations where immediate activation may pose risks. With a DPDT configuration, it enables independent control of two sets of contacts for multiple functions. Moreover, its ability to handle 10A@120/240V AC and 10A @ 30V DC ensures compatibility with different power sources and applications such as heavy machinery, pumps, lights, motors, and more. Its PE electrical base type adds to its versatility for use in various settings. Choose Square D time delay relay for efficient and secure management of your electrical needs!
Top product features:
- DPDT configuration: Enables independent control of two sets of contacts for multiple functions.
- Delayed timing function: Provides added safety in operations where immediate activation may pose risks.
- 120V AC coil voltage and 10A @ 120/240V AC, 10A@30V DC rating: Ensures compatibility with different power sources and applications such as heavy machinery, pumps, lights, motors, and more.
Top product applications:
- Controlling two electrical loads with an adjustable time delay.
- Managing heavy machinery startup and shutdown procedures to prevent sudden load surges.
- Regulating water pumps in pools, irrigation systems, or water treatment plants to ensure stable water flow and pressure levels.
Technical Specifications
- Item - Relay Single Function Timing Relay
- Function - Timing Relay On Delay
- Coil Volts 120V AC
- AC Contact Rating - Relay 10A @ 120/240V
- DC Contact Rating - Relay 10A @ 30V
- Base Type - Plug In Relay Octal
- Number of Pins - Relay 8
- Mounting - Relay Plug In
- Contact Form - Relay DPDT
- Power Consumption - Relay 2.0 VA
- Adjustment Method - Timer Dip Switch
- Min. Time Setting - Timer 0.05 sec
- Max. Time Setting - Timer 16 day 39 min
- Contact Material Silver Alloy
- Body Height - Relay 3.39 in
- Body Width - Relay 2.4 in
- Body Depth - Relay 1.71 in
- Overall Height - Relay 4.1 in
- Electrical Connection Socket
- Socket 1EGP3, 1EGP5, 5X852
- Hz - Electrical 50 Hz, 60 Hz
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: 9050JCK60V20
- MPN: 9050JCK60V20
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Time-Delay Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121519
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Time relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
