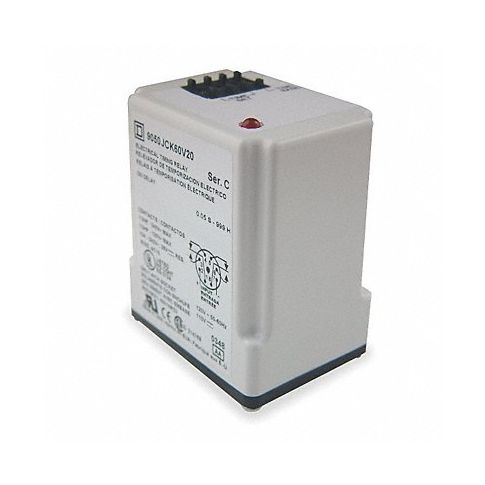

Time Delay Relay 240VAC 10A DPDT .05 sec MPN:9050JCK60V24

Technical Specifications

• Item - Relay Single Function Timing Relay
• Function - Timing Relay On Delay
• Coil Volts 240V AC
• AC Contact Rating - Relay 10A @ 120/240V
• DC Contact Rating - Relay 10A @ 30V
• Base Type - Plug In Relay Octal
• Number of Pins - Relay 8
• Mounting - Relay Plug In
• Contact Form - Relay DPDT
• Power Consumption - Relay 2.0 VA
• Adjustment Method - Timer Dip Switch
• Min. Time Setting - Timer 0.05 sec
• Max. Time Setting - Timer 16 day 39 min
• Contact Material Silver Alloy
• Body Height - Relay 3.39 in
• Body Width - Relay 2.4 in
• Body Depth - Relay 1.71 in
• Overall Height - Relay 4.1 in
• Electrical Connection Socket
• Socket 1EGP3, 1EGP5, 5X852
• Hz - Electrical 50 Hz, 60 Hz
• Standards CE, CSA, UL

Manufacturer Details

• Manufacturer: Schneider
• Condensed Mfg Number: 9050JCK60V24
• MPN: 9050JCK60V24

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490080
• GDS Category Name: Time-Delay Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121519
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 19
• UNSPSC Commodity Name: Time relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
