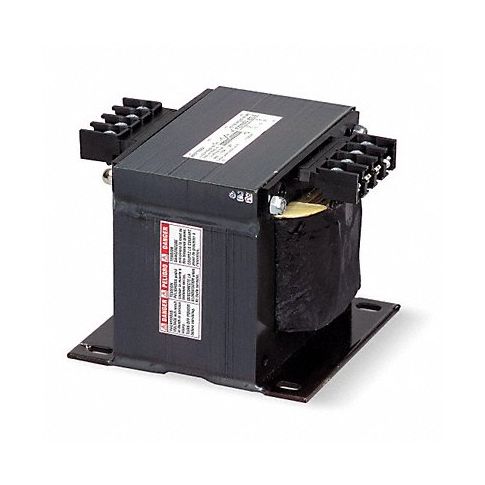

Control Transformer 1.5kVA 6.16 in H MPN:9070T1500D1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-4RM77
Control Transformer 1.5kVA 6.16 in H
Square D's Control Transformer is an essential component for many industrial automation systems and equipment. With its high capacity for handling inrush current and excellent voltage regulation, this transformer ensures smooth operation of your devices such as contactors, starters, solenoids, relays, and more. Featuring copper winding construction and vacuum impregnation with varnish for durability, this 1.5kVA, 120V AC transformer is designed to meet the demands of various industrial settings. Control Transformer from Square D provides reliable performance, reducing downtime and increasing productivity.
Top product features:
- Excellent voltage regulation
- High capacity for handling inrush current
- Durable construction with copper winding and vacuum impregnation
Top product applications:
- Industrial automation systems
- Electrical equipment operation
- Machine control and power distribution
Designed with low impedance windings for excellent voltage regulation, this transformer can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. It is copper wound and vacuum impregnated with varnish.
Technical Specifications
- Item - Transformer Control Transformer
- Input Voltage - Transformer 240V AC, 480V AC
- Output Voltage - Transformer 120V AC
- VA Rating - Transformer 1.5 kVA
- Protective Device None
- Enclosure Style - Transformer Open
- Mounting - Transformer Foot
- Phase - Electrical 1
- Hz - Electrical 50 Hz, 60 Hz
- Temp. Rise 115 Degrees C
- Enclosure Finish Varnish Vacuum Impregnation
- Height 6.16 in
- Depth 7.06 in
- Width 7.06 in
- Standards CE Marked, NOM Requirements, UL Listed, CSA Approved
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 9070T1500D1
- MPN: 9070T1500D1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504320000
- GDS Category Name: Control Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121001
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution power transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B000CG6JP2
