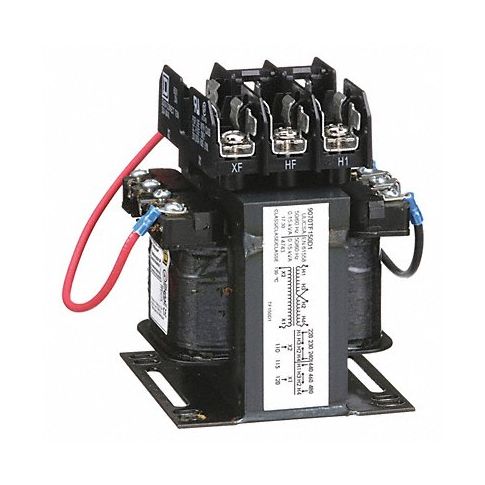

Control Transformer 150VA 4.55 in H MPN:9070TF150D1
Free Shipping
In Stock
Introducing Square D's latest Control Transformer your ideal solution for a wide range of electrical control applications! This transformer offers versatility, with an impressive VA rating of 150, allowing it to handle various power requirements efficiently. Its fully encapsulated coil provides easy wire routing, making installation a breeze. Plus, its durable construction ensures long-lasting performance and reliability. The Control Transformer is perfect for lighting control systems, motor and heating control circuits, and other similar applications. With an input voltage range of 240V AC or 480V AC, it's suitable for various power sources. Its output voltage of 120V AC ensures stable power delivery. The transformer comes with primary and secondary fuses to protect your equipment from damage due to overload or short circuits. With its compact size of 4.55 in H, this transformer takes up minimal space while delivering powerful performance. Choose Square D's Control Transformer for all your electrical control needs!
Top product features:
- Fully encapsulated coil for easy wire routing
- Durable construction for long-lasting performance
- Primary and secondary fuses for protection against overload and short circuits
Top product applications:
- Lighting control systems
- Motor speed control circuits
- Heating element control circuits
Technical Specifications
- Item - Transformer Control Transformer
- Input Voltage - Transformer 240V AC, 480V AC
- Output Voltage - Transformer 120V AC
- VA Rating - Transformer 150 VA
- Protective Device Primary Fuse, Secondary Fuse
- Enclosure Style - Transformer Open
- Mounting - Transformer Foot
- Phase - Electrical 1
- Hz - Electrical 50 Hz, 60 Hz
- Temp. Rise 55 Degrees C
- Enclosure Finish Varnish Vacuum Impregnation
- Height 4.55 in
- Depth 3.75 in
- Width 3.59 in
- Includes Top Mounted Fuse Block
- Standards Standard 508 and NEC 450
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 9070TF150D1
- MPN: 9070TF150D1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504314065
- GDS Category Name: Control Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121001
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution power transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:15pm UTC Category: Transformers
