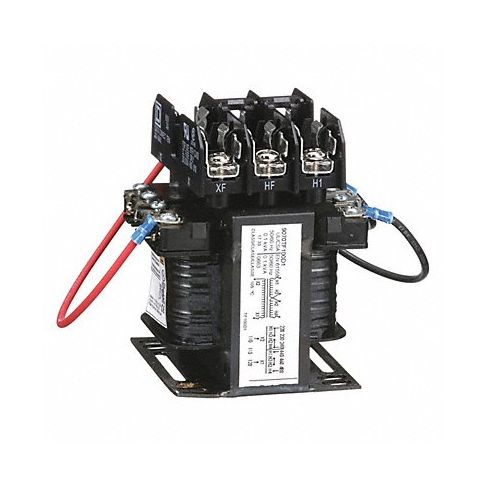

Control Transformer 100VA 4.43 in H MPN:9070TF100D1
Introducing Square D's Control Transformer - 100VA, designed to provide versatile power solutions for various applications. This compact transformer is packed with features, including a fully encapsulated coil that eases wire routing and a durable construction that ensures long-lasting performance. With an input voltage range of 240V AC or 480V AC and output voltage of 120V AC, it's perfect for use in residential, commercial or industrial settings. Its small size doesn't compromise its power though, with a VA rating of 100, it's powerful enough to handle many applications. In addition, primary and secondary fuses provide added protection ensuring safety and peace of mind. With all these benefits, the Square D Control Transformer is an essential tool for anyone looking for reliable power solutions.
Top product features:
- Fully encapsulated coil for ease in wire routing
- Durable construction for longer lifespan
- Primary and secondary fuses for added safety
Top product applications:
- Home automation systems
- Lighting controls
- Power protection for electronic devices
Technical Specifications
- Item - Transformer Control Transformer
- Input Voltage - Transformer 240V AC, 480V AC
- Output Voltage - Transformer 120V AC
- VA Rating - Transformer 100 VA
- Protective Device Primary Fuse, Secondary Fuse
- Enclosure Style - Transformer Open
- Mounting - Transformer Foot
- Phase - Electrical 1
- Hz - Electrical 50 Hz, 60 Hz
- Temp. Rise 55 Degrees C
- Enclosure Finish Varnish Vacuum Impregnation
- Height 4.43 in
- Depth 3.38 in
- Width 3.34 in
- Includes Top Mounted Fuse Block
- Standards Standard 508 and NEC 450
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 9070TF100D1
- MPN: 9070TF100D1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504314065
- GDS Category Name: Control Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121001
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution power transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
