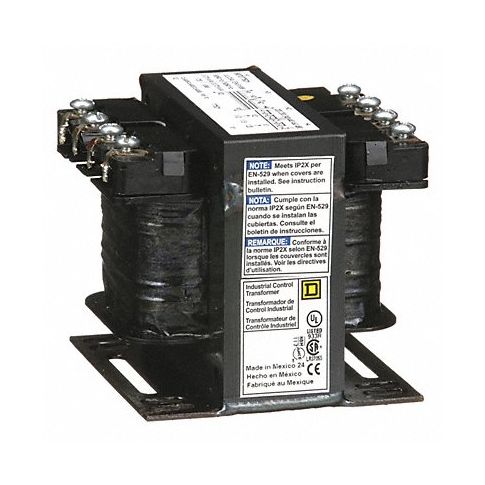

Control Transformer 75VA 4.43 in H MPN:9070T75D1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-4R894
Control Transformer 75VA 4.43 in H
Introducing Control Transformer 75VA from Square D, designed to handle high inrush current associated with contactors, starters, solenoids, relays, and other electrical devices. This copper-wound transformer is vacuum impregnated with varnish for excellent voltage regulation. With an input voltage of 240V or 480V AC and an output voltage of 120V AC, it is suitable for various applications that require a low impedance winding solution. Its compact size of 4.43 inches height ensures easy installation in electrical panels. Save money on energy costs with this high-quality transformer that delivers stable power to your electrical equipment. Order yours today and experience the difference!
Top product features:
- Copper-wound construction for high inrush current handling capability
- Low impedance windings for excellent voltage regulation
- Compact size of 4.43 inches height for easy installation
Top product applications:
- Starting and running electrical devices that require 120V AC power from a 240V or 480V AC source
- Operating contactors, starters, solenoids, and relays that have high inrush current requirements
- Providing stable voltage regulation for sensitive electrical equipment
Designed with low impedance windings for excellent voltage regulation, this transformer can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. It is copper wound and vacuum impregnated with varnish.
Technical Specifications
- Item - Transformer Control Transformer
- Input Voltage - Transformer 240V AC, 480V AC
- Output Voltage - Transformer 120V AC
- VA Rating - Transformer 75 VA
- Protective Device None
- Enclosure Style - Transformer Open
- Mounting - Transformer Foot
- Phase - Electrical 1
- Hz - Electrical 50 Hz, 60 Hz
- Temp. Rise 55 Degrees C
- Enclosure Finish Epoxy Resin Varnish
- Height 4.43 in
- Depth 3.38 in
- Width 3.34 in
- Standards CSA Approved, cUL Listing, EN Listing, UL Listing
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 9070T75D1
- MPN: 9070T75D1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504314065
- GDS Category Name: Control Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121001
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution power transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00CONB5FU
Product info last updated on November 17, 2023 12:16pm UTC Category: Transformers
