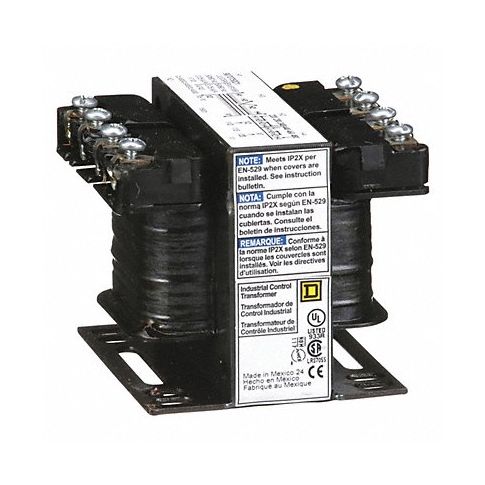

Control Transformer 50VA 2.56 in H MPN:9070T50D1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-4R874
Control Transformer 50VA 2.56 in H
Control Transformers are an essential component for electrical systems as they regulate voltage levels in various devices such as motors, equipment, or lighting circuits. Our Control Transformer - Square D 50VA boasts low impedance windings that deliver excellent voltage regulation and can easily handle high inrush currents of contactors, starters, solenoids, relays, and more. With a copper-wound design and vacuum impregnation with varnish for enhanced durability, it's ideal for various applications across different industries. The control transformer comes in an impressive 2.56-inch height making it compact enough for tight spaces while still delivering remarkable performance.
Top product features:
- Low impedance windings for excellent voltage regulation
- Copper wound design
- Vacuum impregnation with varnish for enhanced durability
Top product applications:
- Regulating voltage in devices that require stable power levels such as motors, lights, or electronics
- Protecting delicate circuits from high current spikes caused by switching devices like contactors and relays
- Operating sensors, solenoids, or small actuators in industrial, commercial, and residential settings
Designed with low impedance windings for excellent voltage regulation, this transformer can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. It is copper wound and vacuum impregnated with varnish.
Technical Specifications
- Item - Transformer Control Transformer
- Input Voltage - Transformer 240V AC, 480V AC
- Output Voltage - Transformer 120V AC
- VA Rating - Transformer 50 VA
- Protective Device None
- Enclosure Style - Transformer Open
- Mounting - Transformer Foot
- Phase - Electrical 1
- Hz - Electrical 50 Hz, 60 Hz
- Temp. Rise 55 Degrees C
- Enclosure Finish Epoxy Resin Varnish
- Height 2.56 in
- Depth 3.0 in
- Width 3.0 in
- Standards CSA Approved, cUL Listing, EN Listing, UL Listing
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 9070T50D1
- MPN: 9070T50D1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504314065
- GDS Category Name: Control Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121001
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution power transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
