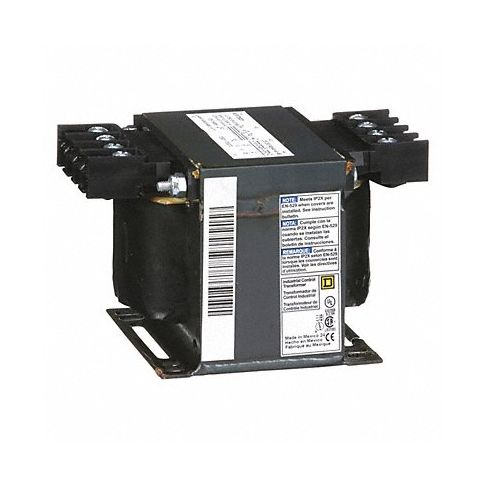

Control Transformer 250VA 3.25 in H MPN:9070T250D1
Introducing Square D's Control Transformer 250VA 3.25 in H - the ultimate solution for controlling electric motor loads with high inrush current capacity. Designed with low impedance windings for excellent voltage regulation, this transformer is ideal for use with contactors, starters, solenoids, and relays. With a VA rating of 250, it can handle a wide range of applications and voltage inputs from 240V AC to 480V AC. The copper windings ensure maximum efficiency and durability, while the vacuum impregnation with varnish protects against moisture and corrosion. Plus, with its compact size and lightweight design, this transformer is easy to install and maintain. Upgrade your control system today with Square D's Control Transformer 250VA 3.25 in H - the perfect choice for reliable and efficient power management!
Top product features:
- Low impedance windings for excellent voltage regulation
- Compact size and lightweight design for easy installation
- Copper windings for maximum efficiency
Top product applications:
- Controlling electric motor loads in industrial settings
- Powering automated systems and machines
- Operating electro-mechanical equipment
Technical Specifications
- Item - Transformer Control Transformer
- Input Voltage - Transformer 240V AC, 480V AC
- Output Voltage - Transformer 120V AC
- VA Rating - Transformer 250 VA
- Protective Device None
- Enclosure Style - Transformer Open
- Mounting - Transformer Foot
- Phase - Electrical 1
- Hz - Electrical 50 Hz, 60 Hz
- Temp. Rise 80 Degrees C
- Enclosure Finish Epoxy Resin Varnish
- Height 3.25 in
- Depth 3.75 in
- Width 5.25 in
- Standards CSA Approved, cUL Listing, EN Listing, UL Listing
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 9070T250D1
- MPN: 9070T250D1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504314065
- GDS Category Name: Control Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121001
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution power transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC Category: Transformers
