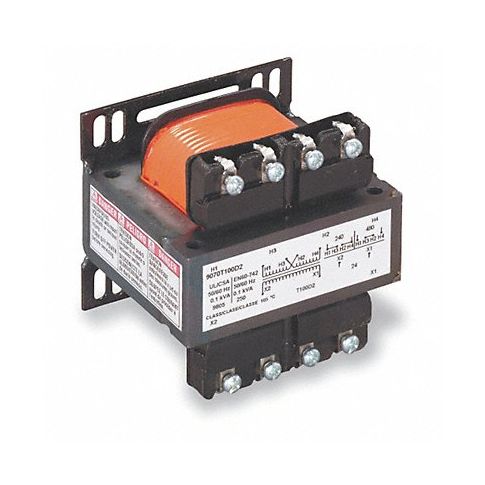

Control Transformer 150VA 4.55 in H MPN:9070T150D1SF41

Designed with low impedance windings for excellent voltage regulation, this transformer can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. It is copper wound and vacuum impregnated with varnish.

Technical Specifications

• Item - Transformer Control Transformer
• Input Voltage - Transformer 240V AC, 480V AC
• Output Voltage - Transformer 120V AC
• VA Rating - Transformer 150 VA
• Protective Device Secondary Fuse
• Enclosure Style - Transformer Open
• Mounting - Transformer Foot
• Phase - Electrical 1
• Hz - Electrical 50 Hz, 60 Hz
• Temp. Rise 55 Degrees C
• Enclosure Finish Epoxy Resin Varnish
• Height 4.55 in
• Depth 3.75 in
• Width 3.59 in
• Includes Secondary Fuse Clips to Accommodate One 1-1/2 in x 13/32 in Midget Fuse, Top Mounted Fuse Block
• Standards CSA Approved, cUL Listing, EN Listing, UL Listing
• Manufacturers Warranty Length 1 yr

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: 9070T150D1SF41
• MPN: 9070T150D1SF41

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8504314065
• GDS Category Name: Control Transformers
• GDS Family Name: Transformers
• GDS Segment Name: Electrical
• UNSPSC: 39121001
• UNSPSC Class ID: 10
• UNSPSC Commodity Name: Power conditioning equipment
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Distribution power transformers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
