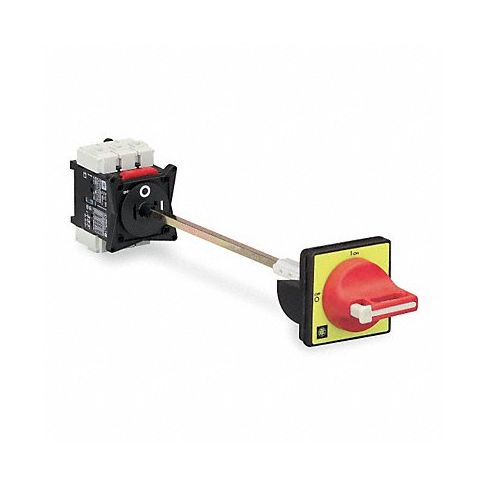

Door Mount Loadbreak Switch 3 Pole 45A MPN:VCCF3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-4B994
Door Mount Loadbreak Switch 3 Pole 45A
Introducing our Door Mount Loadbreak Switch - the ultimate solution for controlling and protecting your motor branches with ease. Engineered to offer versatility and reliability, this switch features a nonfusible design that provides efficient overload protection in industrial settings. Its compact and durable construction ensures effortless installation, while its door-mounted mechanism guarantees smooth operation and long service life. Ideal for use in diverse applications such as machine tools, packaging equipment, and agricultural machinery, this switch delivers a powerful punch to meet your motor control requirements. Upgrade to our Door Mount Loadbreak Switch today and enjoy unmatched efficiency, performance, and protection!
Top product features:
- Compact and durable construction for easy installation
- Door-mounted mechanism for smooth operation
- Nonfusible design provides efficient overload protection
Top product applications:
- Machine tools for manufacturing and production lines
- Packaging equipment for assembling and sealing processes
- Agricultural machinery for controlling motors in tractors and harvesters
Door-Mount, Nonfusible Load Break Switches• 3-poleFor applications where motor branch circuit protection is provided upstream of the switch. UL 508 nonfusible load break switches; UL 508 Listed as manual motor controllers. Complete with mounting handle operator, 13" shaft, door interlock plate, and line terminal shroud.CE Certified.
Technical Specifications
- Item Door Mount Loadbreak Switch
- Amps AC 45 A
- Protection Method Nonfusible
- Number of Poles 3
- HP @ 240V 15 1/2 hp
- HP @ 480V 30 hp
- HP @ 600V 40 hp
- Handle Color Red
- Shaft Length 13 in
- Application For Use Where Motor Branch Circuit Protection is Provided Upstream of the Switch
- Standards UL Listed
- Includes Door Interlock Plate, Line Terminal Shroud, Mounting Handle Operator, Shaft
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: VCCF3
- MPN: VCCF3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509040
- GDS Category Name: Door Mount Switches
- GDS Family Name: Safety Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Safety switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
