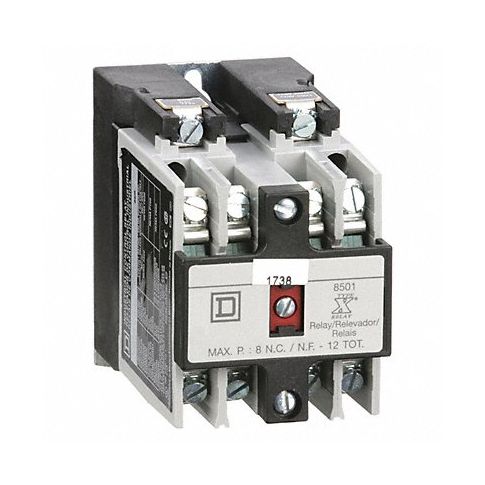

H2717 NEMA Control Relay 4NO 120VAC 10A MPN:8501XO40V02
The H2717 NEMA Control Relay from Square D is an essential tool for controlling various types of electrical loads in both commercial and residential settings. With a rating of 4NO (four Normally Open contacts) and 10A (ampere), this relay can handle heavy-duty applications while providing reliable operation. Its NEMA style design ensures compatibility with most industrial equipment, making it an ideal choice for industrial automation, power management, and lighting control systems. This relay also features a robust construction that is resistant to moisture, chemicals, and extreme temperatures, ensuring long-lasting performance in demanding environments. With its multiple voltage rating options (120/240/480/600V), the H2717 NEMA Control Relay offers versatile applications for various types of electrical systems. The 10-pin design allows for easy installation and connection to other control devices, making it a perfect choice for professionals and DIY enthusiasts alike.
Top product features:
- NEMA Style Control Relay Provides compatibility with various types of electrical equipment and systems
- 10A AC Contact Rating Enables reliable operation of heavy-duty applications
- 10-Pin Design Offers easy installation and connection to other control devices
Top product applications:
- Industrial Automation Control of electrical equipment and machinery in manufacturing plants or factories
- Lighting Control Systems Dimming or switching lights remotely for energy efficiency or customized lighting setups
- Motor Control Regulating the speed, direction, and torque of motors in industrial or residential settings
Technical Specifications
- Item - Relay NEMA Style Control Relay
- Coil Volts 120V AC
- AC Contact Rating - Relay 10A @ 120/240/480/600V
- DC Contact Rating - Relay 5A @ 125/250V
- Number of Pins - Relay 10
- Contact Form - Relay (4) SPST-NO
- Mounting - Relay Surface
- Power Consumption - Relay 23.0 VA
- Body Height - Relay 3.5 in
- Body Width - Relay 2.23 in
- Body Depth - Relay 3.95 in
- Overall Height - Relay 3.5 in
- Hz - Electrical 50 Hz, 60 Hz
- Response Time Drop Out: 16 msec, Pick Up: 15 msec
- Contact Material Silver Cadmium Oxide
- Accessory Group A
- Features Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8501XO40V02
- MPN: 8501XO40V02
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: IEC and NEMA Style Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121515
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 15
- UNSPSC Commodity Name: General purpose relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Relays
