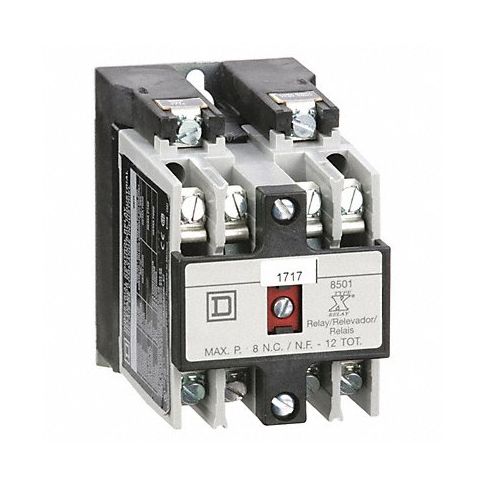

H2715 NEMA Control Relay2NO120VAC10A MPN:8501XO20V02
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-4B522
H2715 NEMA Control Relay2NO120VAC10A
Look no further for an industry-grade relay switch! This NEMA style control relay from Square D delivers reliable performance for a range of commercial and industrial applications. With 120V AC voltage capabilities, it's suitable for various electrical systems and can handle up to 10A current flow. Its robust design accommodates both AC and DC voltage ratings, making it versatile in use. Plus, with six pins, you get plenty of connectivity options. Upgrade your equipment and automation processes with this dependable control relay switch today!
Top product features:
- Reliable performance for commercial and industrial applications
- Capable of handling up to 10A current flow
- Accommodates AC and DC voltage ratings
Top product applications:
- Use in commercial and industrial settings where reliable control of electrical circuits is required
- Utilization in automation processes that demand precision control of various equipment and machinery
- Implementation in switchboard installations to manage high voltage loads
Get Square D item #8501XO20V02 from our selection of Specialty Electrical Switches & Relays while supporting Veterans 🎖.
Technical Specifications
- Item - Relay NEMA Style Control Relay
- Coil Volts 120V AC
- AC Contact Rating - Relay 10A @ 120/240/480/600V
- DC Contact Rating - Relay 5A @ 125/250V
- Number of Pins - Relay 6
- Contact Form - Relay (2) SPST-NO
- Mounting - Relay Surface
- Power Consumption - Relay 23.0 VA
- Body Height - Relay 3.5 in
- Body Width - Relay 2.23 in
- Body Depth - Relay 3.95 in
- Overall Height - Relay 3.5 in
- Hz - Electrical 50 Hz, 60 Hz
- Response Time Drop Out: 16 msec, Pick Up: 15 msec
- Contact Material Silver Cadmium Oxide
- Accessory Group A
- Features Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8501XO20V02
- MPN: 8501XO20V02
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: IEC and NEMA Style Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121515
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 15
- UNSPSC Commodity Name: General purpose relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B000CCJFSO
Product info last updated on November 17, 2023 12:17pm UTC Category: Relays
