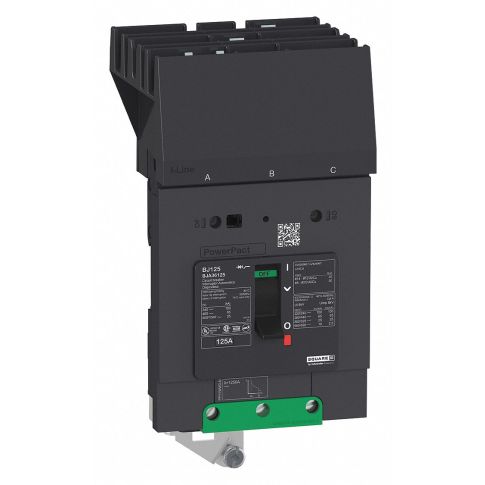

Circuit Breaker 125A 3P 690VAC BJA MPN:BJA36125
The Square D molded case circuit breaker is an ideal choice for protecting devices from electrical damage in various commercial and industrial applications. Its robust construction ensures reliable performance under tough conditions, making it perfect for electrical distribution equipment, control panels, and OEM systems. The breaker offers high-quality performance by carrying up to 125A of current with a B-frame design that makes installation quick and easy. Boasting a rating of 690V AC, this durable breaker delivers exceptional performance for extended periods, ensuring optimal protection against short circuits and other electrical issues. Its cost-effective nature makes it the go-to choice for many professionals looking to keep their equipment safe from power fluctuations and surges.
Top product features:
- B-frame design for quick installation
- High voltage rating of 690V AC
- Rated up to 125A for maximum current capacity
Top product applications:
- Protection against electrical damage in industrial control panels
- Overcurrent protection for electrical distribution equipment
- Short-circuit protection for commercial and residential systems
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 125 A
- AC Voltage Rating 690V AC
- Max. AIR Rating 100kA at 120/240V AC
- For Use With Electrical Distribution Equipment, Industrial Control Panels
- Series BJA
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating Not Rated
- Terminal Connection Al Mechanical Lug OFF End, I-Line ON End
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Fixed
- Phase Connection ABC
- Frame Size 125A/BJ
- Circuit Breaker Mounting Style I-Line
- Height 5.39 in
- Width 3.19 in
- Depth 3.5 in
- Min. Wire Size 14 AWG
- Max. Wire Size 2 AWG
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 158 Degrees F
- Min. Operating Temp. -13 Degrees F
- Standards CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: BJA36125
- MPN: BJA36125
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121616
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 16
- UNSPSC Commodity Name: Molded case circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
