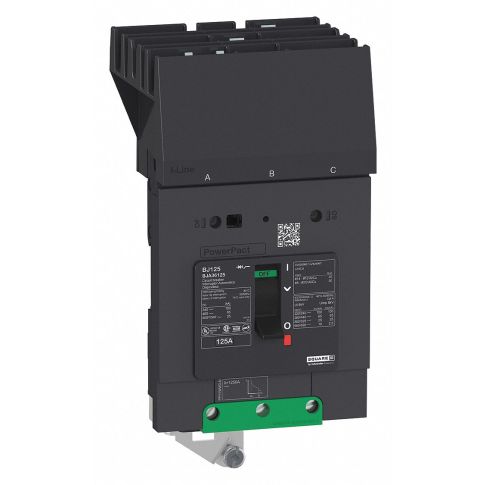

Circuit Breaker 125A 3P 525VAC BGA MPN:BGA36125
Introducing Square D's premium 125A 3P 525VAC molded case circuit breaker - built to protect your industrial and commercial electrical systems from damaging surges. Our B-frame breaker offers an increased current capacity, allowing for the handling of heavy loads in a compact design. Featuring advanced trip devices and mechanical interlocks, this breaker ensures that your equipment is safeguarded against power spikes, short circuits, and other potential hazards. Equipped with a 525VAC voltage rating and max. AIR rating of 100kA at 240V AC, our circuit breaker offers reliable performance across a wide range of applications - making it the perfect choice for electrical distribution equipment, control panels, and commercial OEM products. Reduce downtime and minimize the risk of electrical fires by choosing Square D's superior-quality circuit breakers today!
Top product features:
- B-frame construction provides increased durability and reliability in tough environments
- Amps rating of 125A handles heavier loads for industrial and commercial use
- Advanced trip devices and mechanical interlocks enhances safety by providing additional protection against electrical hazards
Top product applications:
- Electrical distribution equipment provides protection against surges and voltage fluctuations in electrical systems
- Industrial control panels safeguards electrical equipment from damaging power spikes and short circuits
- Commercial OEM products enhances the performance and safety of machinery and equipment with built-in circuit breakers
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 125 A
- AC Voltage Rating 525V AC
- Max. AIR Rating 100kA at 240V AC
- For Use With Electrical Distribution Equipment, Industrial Control Panels
- Series BGA
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating Not Rated
- Terminal Connection Al Mechanical Lug OFF End, I-Line ON End
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Fixed
- Phase Connection ABC
- Frame Size 125A/BG
- Circuit Breaker Mounting Style I-Line
- Height 5.39 in
- Width 3.19 in
- Depth 3.5 in
- Min. Wire Size 14 AWG
- Max. Wire Size 2 AWG
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 158 Degrees F
- Min. Operating Temp. -13 Degrees F
- Standards CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: BGA36125
- MPN: BGA36125
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121616
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 16
- UNSPSC Commodity Name: Molded case circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
