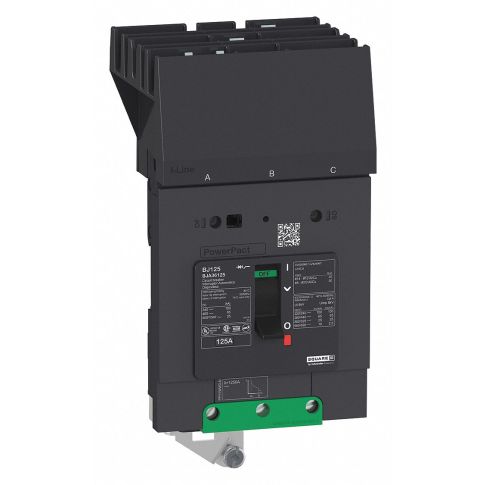

Circuit Breaker 90A 3P 525VAC BGA MPN:BGA36090
Circuit Breaker 90A 3P 525VAC BGA
Introducing Square D's Molded Case Circuit Breaker, a versatile and reliable device designed for protecting electrical systems from damage. With a rating of 90A and an AC Voltage Rating of 525V AC, this breaker is perfect for industrial control panels, commercial OEM, and electrical distribution equipment. Its robust construction and trip devices ensure maximum protection against excessive current flows, making it ideal for use in various applications across multiple industries. Whether you're a professional electrician or DIY enthusiast, the Square D Molded Case Circuit Breaker is an essential tool to have on hand to safeguard your electrical systems and devices.
Top product features:
- Rated for 90A current to protect larger devices and electrical systems
- AC Voltage Rating of 525V AC for use in a wide range of applications
- Maximum AIR rating of 100kA at 240V AC ensures maximum protection against excessive currents
Top product applications:
- Industrial control panels for monitoring and controlling electrical systems in manufacturing, utility, or industrial settings
- Commercial OEM products that integrate circuit breakers into larger electrical systems and equipment for commercial buildings and infrastructure
- Electrical distribution equipment such as power strips, surge protectors, and circuit protection devices for homes and small businesses
B-frame Square D molded case circuit breakers are rated up to 125A and interrupt excessive current flows to protect devices from electrical damage. They're used in industrial control panels, commercial OEM, electrical distribution equipment, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 90 A
- AC Voltage Rating 525V AC
- Max. AIR Rating 100kA at 240V AC
- For Use With Electrical Distribution Equipment, Industrial Control Panels
- Series BGA
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating Not Rated
- Terminal Connection Al Mechanical Lug OFF End, I-Line ON End
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Fixed
- Phase Connection ABC
- Frame Size 125A/BG
- Circuit Breaker Mounting Style I-Line
- Height 5.39 in
- Width 3.19 in
- Depth 3.5 in
- Min. Wire Size 14 AWG
- Max. Wire Size 2 AWG
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 158 Degrees F
- Min. Operating Temp. -13 Degrees F
- Standards CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: BGA36090
- MPN: BGA36090
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121616
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 16
- UNSPSC Commodity Name: Molded case circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
