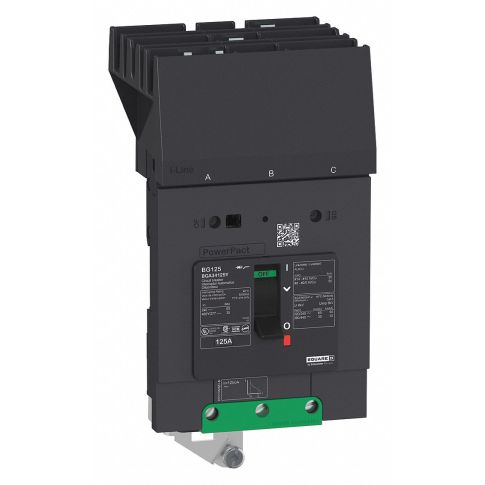

Circuit Breaker 100A 3P 277/480VAC BDA MPN:BDA34100Y
Circuit Breaker 100A 3P 277/480VAC BDA
Square D's molded case circuit breaker is an essential piece of equipment for any electrical panel, offering unmatched protection against overloaded circuits. With its robust B-frame design and industry-leading rating of up to 125A, it ensures a secure connection that can handle even the most demanding power needs. Ideal for use in industrial control panels or commercial OEM equipment, this circuit breaker delivers optimal performance in various applications, including electrical distribution systems. Investing in a Square D molded case circuit breaker is an investment in your business's safety and continuity, providing you with the peace of mind that comes from knowing you are protected against electrical hazards.
Top product features:
- Rated up to 125A for high power needs
- Molded case for durability and containment of electrical parts
- Interrupts excessive current flows for protection against electrical hazards
Top product applications:
- Protecting devices from electrical damage in industrial control panels
- Providing high power needs in commercial OEM equipment
- Preventing electrical hazards in electrical distribution systems
B-frame Square D molded case circuit breakers are rated up to 125A and interrupt excessive current flows to protect devices from electrical damage. They're used in industrial control panels, commercial OEM, electrical distribution equipment, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 100 A
- AC Voltage Rating 277/480V AC
- Max. AIR Rating 25kA at 277/408V AC
- For Use With Electrical Distribution Equipment, Industrial Control Panels
- Series BDA
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating Not Rated
- Terminal Connection Al Mechanical Lug OFF End, I-Line ON End
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Fixed
- Phase Connection ABC
- Frame Size 125A/BD
- Circuit Breaker Mounting Style I-Line
- Height 5.39 in
- Width 3.19 in
- Depth 3.5 in
- Min. Wire Size 14 AWG
- Max. Wire Size 2 AWG
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 158 Degrees F
- Min. Operating Temp. -13 Degrees F
- Standards CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: BDA34100Y
- MPN: BDA34100Y
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
