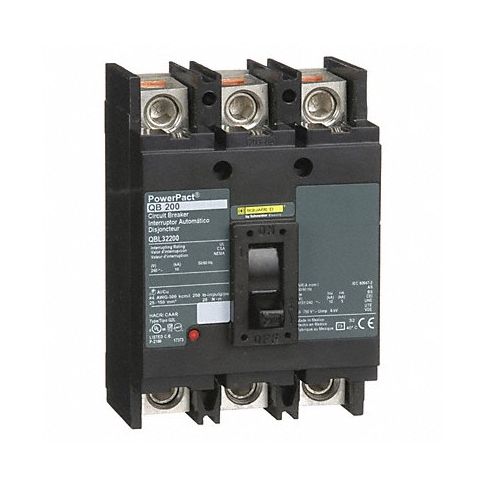

Circuit Breaker 200A 3P 240VAC QB MPN:QBL32200
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-3XE13
Circuit Breaker 200A 3P 240VAC QB
Introducing Square D's Q-frame molded case circuit breaker, perfect for commercial and industrial use. Rated up to 250A and 240VAC, these durable circuit breakers interrupt excessive current flows to protect devices from electrical damage. The circuit breaker comes in a molded case with a robust construction suitable for demanding applications. This breaker's 10kA at 240V AC max AIR rating ensures high-level protection and its 200 Amp current carrying capacity delivers reliable performance. The circuit breaker is easy to install and fits into a QB frame, making it an ideal solution for any OEM project. Invest in the Square D Q-frame molded case circuit breaker and keep your devices safe and secure!
Top product features:
- Molded case construction for durability and protection
- Rated up to 250A and 240VAC for high-level protection
- QB frame for easy installation in OEM projects
Top product applications:
- Use in OEM commercial and industrial applications where high-level protection is required for devices from excessive current flows
- Protect equipment and appliances that need safeguarding against electrical issues like overload or short circuits
- Use in projects where easy installation of a circuit breaker in QB frame is required
Q-frame Square D molded case circuit breakers are rated up to 250A and 240VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in OEM commercial and industrial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 200 A
- AC Voltage Rating 240V AC
- Max. AIR Rating 10kA at 240V AC
- Series QB
- High Amp Trip Setting 2,400 A
- Low Amp Trip Setting 1,200 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating Not Rated
- Terminal Connection Line/Load Lug
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Fixed
- Phase Connection ABC
- Frame Size 250A/QB
- Circuit Breaker Mounting Style Free Standing
- Height 6.47 in
- Width 4.5 in
- Depth 3.93 in
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Circuit Breaker Actuator Toggle
- Standards CSA, IEC, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QBL32200
- MPN: QBL32200
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
