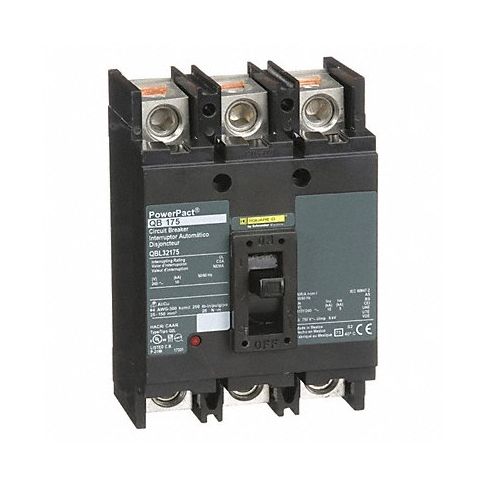

Circuit Breaker 175A 3P 240VAC QB MPN:QBL32175

Q-frame Square D molded case circuit breakers are rated up to 250A and 240VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in OEM commercial and industrial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.

Technical Specifications

• Item Molded Case Circuit Breaker
• Amps 175 A
• AC Voltage Rating 240V AC
• Max. AIR Rating 10kA at 240V AC
• Series QB
• High Amp Trip Setting 2,400 A
• Low Amp Trip Setting 1,200 A
• Circuit Breaker Type Standard
• Number of Poles 3
• DC Voltage Rating Not Rated
• Terminal Connection Line/Load Lug
• Trip Type Thermal Magnetic
• Phase 3
• Instantaneous Trip Fixed
• Phase Connection ABC
• Frame Size 250A/QB
• Circuit Breaker Mounting Style Free Standing
• Height 6.47 in
• Width 4.5 in
• Depth 3.93 in
• Min. Wire Size 4 AWG
• Max. Wire Size 300 MCM
• Circuit Breaker Actuator Toggle
• Max. Operating Temp. 104 Degrees F
• Min. Operating Temp. 104 Degrees F
• Standards CSA, IEC, UL Listed

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: QBL32175
• MPN: QBL32175

Label Details

• Hazardous Material: Y
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536200020
• GDS Category Name: Molded Case Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Circuit breakers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
