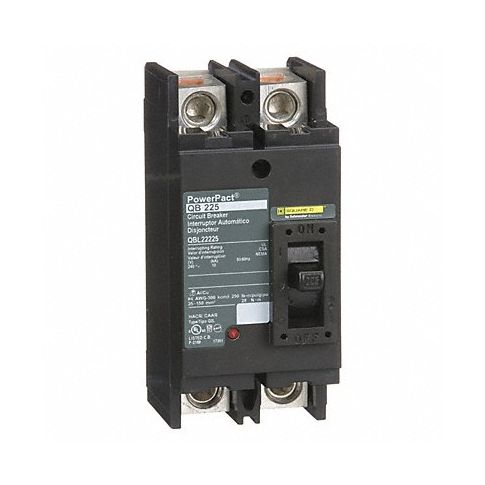

Circuit Breaker 225A 2P 240VAC QB MPN:QBL22225
Free Shipping
In Stock
Introducing Square D Molded Case Circuit Breaker - the ultimate electrical protection solution for commercial and industrial applications. This reliable circuit breaker is rated up to 250A and 240VAC, making it suitable for demanding environments where robust protection is needed. With a compact Q-frame design, it saves space while providing efficient performance. Its molded case construction ensures durability and long-lasting reliability. The Square D Molded Case Circuit Breaker interrupts excessive current flows to protect your devices from electrical damage. With a max AIR rating of 10kA at 240V AC, it is ideal for use in harsh industrial settings, where circuit breakers need to perform under heavy loads. Choose Square D Molded Case Circuit Breaker for optimal protection and reliability.
Top product features:
- Molded case construction for durability
- Rated up to 250A and 240VAC for heavy loads
- Interrupts excessive current flows to protect devices
Top product applications:
- Commercial and industrial electrical systems that require robust protection
- Protecting high-current capacity devices or equipment
- Controlling the flow of electricity in various power distribution setups
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 225 A
- AC Voltage Rating 240V AC
- Max. AIR Rating 10kA at 240V AC
- Series QB
- High Amp Trip Setting 2,400 A
- Low Amp Trip Setting 1,200 A
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Terminal Connection Line/Load Lug
- Trip Type Thermal Magnetic
- Phase 1
- Instantaneous Trip Fixed
- Phase Connection Not Applicable
- Frame Size 250A/QB
- Circuit Breaker Mounting Style Free Standing
- Height 6.47 in
- Width 4.5 in
- Depth 3.93 in
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Circuit Breaker Actuator Toggle
- Standards CSA, IEC, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QBL22225
- MPN: QBL22225
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 20, 2024 5:20am UTC Category: Distribution
