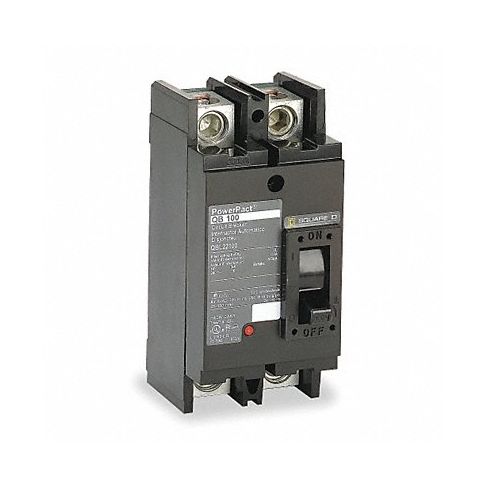

Circuit Breaker 175A 2P 240VAC QB MPN:QBL22175
Free Shipping
In Stock
Introducing Square D's Circuit Breaker - the ultimate protection for your devices! Our Q-frame molded case circuit breakers are designed to handle up to 250A and 240VAC of electrical current, ensuring optimal safety for your equipment. Ideal for both commercial and industrial applications, these durable devices interrupt excessive currents to prevent damage while providing peace of mind. With ratings of up to 10kA at 240V AC, you can trust the Square D Circuit Breaker to protect your devices from harm. Equipped with a user-friendly QB series design, installation and operation are easy for any electrician or DIY enthusiast. Say goodbye to worries about electrical malfunctions and say hello to the safest solution for all of your circuit protection needs!
Top product features:
- Rating: Up to 250A and 240VAC
- Q-frame design: compact and easy installation
- Trip devices: Interrupt excessive current flows to protect devices from electrical damage.
Top product applications:
- Electrical systems protection in commercial and industrial buildings
- Breaker panels in homes and small businesses
- Outdoor circuit protection on construction sites
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 175 A
- AC Voltage Rating 240V AC
- Max. AIR Rating 10kA at 240V AC
- Series QB
- High Amp Trip Setting 2,400 A
- Low Amp Trip Setting 1,200 A
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Terminal Connection Line/Load Lug
- Trip Type Thermal Magnetic
- Phase 1
- Instantaneous Trip Fixed
- Phase Connection Not Applicable
- Frame Size 250A/QB
- Circuit Breaker Mounting Style Free Standing
- Height 6.47 in
- Width 4.5 in
- Depth 3.93 in
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 104 Degrees F
- Standards CSA, IEC, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QBL22175
- MPN: QBL22175
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 29, 2024 4:10am UTC Category: Distribution
