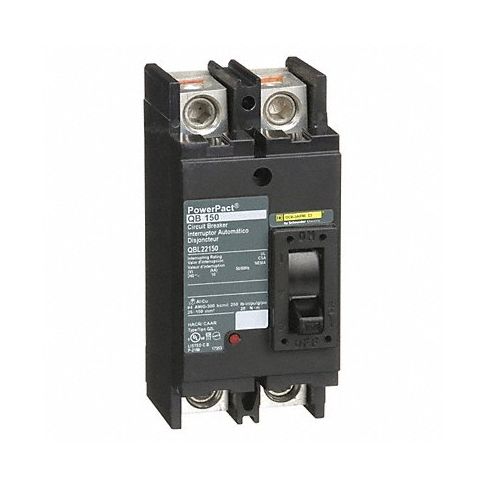

Circuit Breaker 150A 2P 240VAC QB MPN:QBL22150
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-3XB96
Circuit Breaker 150A 2P 240VAC QB
Introducing the Circuit Breaker 150A 2P 240VAC QB from Square D - a revolutionary circuit breaker designed to protect electrical devices from damage in OEM commercial and industrial applications. With its molded case, this circuit breaker offers robust protection against excessive current flows up to 10kA at 240V AC. Its reliable Q-frame construction ensures longevity, making it ideal for harsh environments where durability is essential. The Circuit Breaker 150A from Square D provides maximum safety and peace of mind, ensuring that your devices are protected against power surges and other electrical threats.
Top product features:
- Q-frame construction for durability
- Rated up to 250A and 240VAC for heavy duty applications
- Molded case design for compactness and ease of installation
Top product applications:
- Protecting electrical devices in OEM commercial and industrial applications from power surges and excessive current flows
- Wiring panels, distribution boxes, and other electrical equipment in harsh environments
- Safeguarding high amperage electrical circuits against damage in residential, commercial, or industrial settings
Q-frame Square D molded case circuit breakers are rated up to 250A and 240VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in OEM commercial and industrial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 150 A
- AC Voltage Rating 240V AC
- Max. AIR Rating 10kA at 240V AC
- Series QB
- High Amp Trip Setting 2,400 A
- Low Amp Trip Setting 1,200 A
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Terminal Connection Line/Load Lug
- Trip Type Thermal Magnetic
- Phase 1
- Instantaneous Trip Fixed
- Phase Connection Not Applicable
- Frame Size 250A/QB
- Circuit Breaker Mounting Style Free Standing
- Height 6.47 in
- Width 4.5 in
- Depth 3.93 in
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Circuit Breaker Actuator Toggle
- Standards CSA, IEC, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QBL22150
- MPN: QBL22150
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
