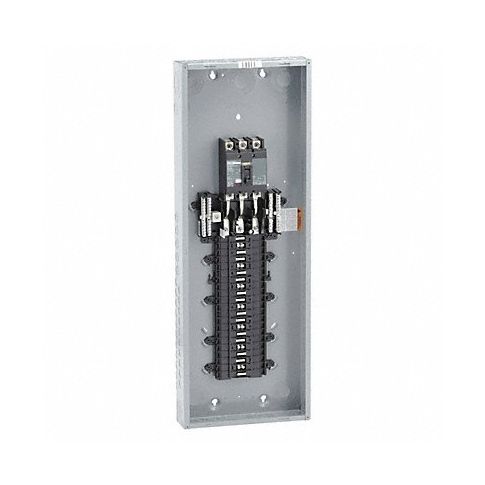

Load Center 200A CB 3 Phase 42 Spaces MPN:QO342MQ200

These Square D main lug load centers distribute power downstream from main breakers and are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They can be converted to a main breaker load center, so they can be used to distribute the main supply of power if needed. These load centers have a neutral bar on either side of the bus bars, so compatible AFCI (arc fault circuit interrupter) or GFCI (ground fault circuit interrupter) breakers can plug directly onto the bus and neutral bars without requiring a pigtail connection. They're used with QO series circuit breakers to protect circuits from overcurrents. These load centers are used in residential, commercial, and industrial applications.

Technical Specifications

• Item Load Center
• Number of Spaces 42
• Amps 200 A
• Voltage 208Y/120/240V AC
• Circuit Breaker Type QO
• Included Enclosure Cover Order Separately
• Main Circuit Breaker or Main Lug Convertible, Main Circuit Breaker
• Max. No. of Tandem Breakers 0
• Phase 3
• Series QO
• Height 39 3/8 in
• Width 14 1/4 in
• Depth 3 3/4 in
• For Use With Square D QO Circuit Breakers
• Bus Material Tin Plated Copper
• Short Circuit Current Rating 25kA
• Enclosure NEMA Rating 1
• Recommended Flush Cover 3XB93
• Recommended Ground Bar Kit 1D370
• Recommended Surface Cover 3XB94
• Color Gray
• Enclosure Material Steel
• Enclosure Surface Finish Enamel
• Feed Location Top/Bottom
• Max. Operating Temp. 104 Degrees F
• Min. Operating Temp. 23 Degrees F
• Special Features Mercury Free
• Location Indoor
• Standards RoHS Compliant, UL Listed

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: QO342MQ200
• MPN: QO342MQ200

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8537109050
• GDS Category Name: Load Centers and Panelboards
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121101
• UNSPSC Class ID: 11
• UNSPSC Commodity Name: Distribution and control centers and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Load centers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
