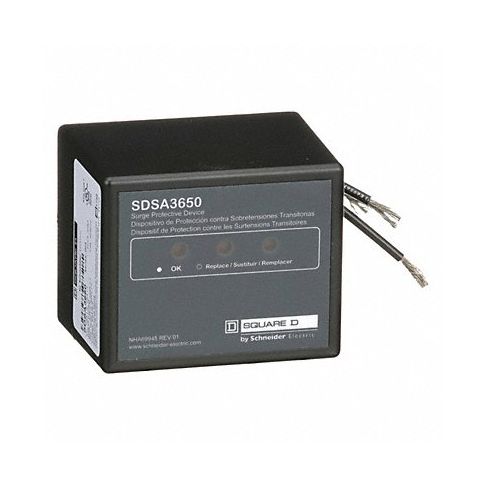

Surge Protection Device 347/600V Wye 3Ph MPN:SDSA3650
Free Shipping
In Stock
Introducing Square D's Surge Protection Device - Model 347/600V Wye 3Ph SPD - the ultimate solution for safeguarding your electrical equipment against power surges caused by lightning strikes or other voltage fluctuations. Ideal for use in service entrance, branch panel, or sensitive electronic applications, these devices come with a chase nipple to easily terminate the wire in an enclosure. The SPD is mounted externally as close to the service panel as possible for added protection. With a voltage rating of 347/600V AC Wye and phase protection, this device is perfect for use in multiple-phase applications. Its Voltage Protection Rating of 1800V (L-N), 3000V (L-L) ensures comprehensive protection against power surges while its Max. Continuing Operating Voltage of 510V AC guarantees stable operation even during fluctuations. Upgrade to Square D's Surge Protection Device - Model 347/600V Wye 3Ph SPD and enjoy the peace of mind that comes with knowing your equipment is safe from power surges.
Top product features:
- Voltage rating: 347/600V AC Wye
- Chase nipple for easy wire termination
- Multiple phase protection: 3 phases
Top product applications:
- Protecting sensitive electronic equipment from power surges in multiple phase applications
- Service entrance protection for commercial and industrial buildings
- Branch panel protection in residential and commercial installations
Technical Specifications
- Item Surge Protection Device
- Voltage 347/600V AC Wye
- Phase 3
- Voltage Protection Rating 1800V (L-N), 3000V (L-L)
- Max. Continuing Operating Voltage 510V AC
- Nominal Discharge Current 10 kA
- Modes of Protection L-L, L-N
- Mounting Location Externally Mounted
- Filtering No
- Modular No
- Amps 40 K
- Color Black
- Mounting Style Chase Nipple
- Enclosure NEMA Rating 4X
- Number of Poles 3
- Basic Material Nonmetallic
- Number of Wires 4 Wires
- System Connection Parallel
- Max. Surge Current per Phase 40 kA
- Short Circuit Current Rating 200kA
- Max. Surge Current per Mode 40kA
- UL SPD Type Type 1
- Joules 1,304
- Length 3.0 in
- Width 3.6 in
- Depth 3.4 in
- Enclosure Material Plastic
- Chase Nipple Size 1/2 in
- Max. Operating Temp. 149 Degrees F
- Wire Gauge 12 AWG
- Includes LED Status Indicator
- Standards CSA C22.2 No 8, NEC 285 Type I, UL 1449:ed. 4 Type I
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: SDSA3650
- MPN: SDSA3650
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536300000
- GDS Category Name: Hardwire Surge Protection Devices
- GDS Family Name: Voltage Regulation
- GDS Segment Name: Electrical
- UNSPSC: 39121610
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 10
- UNSPSC Commodity Name: Surge suppressers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
