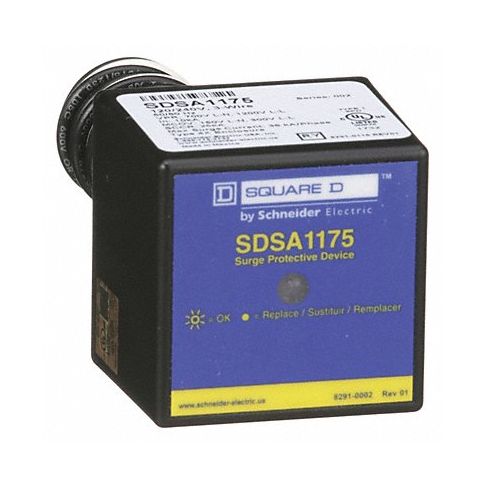

Surge Protection Device 120/240VAC 1Ph MPN:SDSA1175
Free Shipping
In Stock
The Surge Protection Device from Square D is an essential tool for safeguarding your electrical equipment against damaging power surges. Designed to detect and limit surges, this device provides a first line of defense for your sensitive electronics, appliances, and wiring systems. With a voltage protection rating of 1200V (L-L), 700V (L-N), it can withstand even the most powerful surges while maintaining the highest level of safety. The compact design allows for easy installation in service entrances, branch panels, or any location where electrical protection is required. Plus, with a maximum continuous operating voltage of 150V AC, you can rest assured that your equipment will continue to operate safely even during periods of fluctuating power. Whether you're protecting your home or office, the Surge Protection Device from Square D is the ultimate safeguard for your electrical systems.
Top product features:
- Voltage Protection Rating protects against damaging power surges
- Max. Continuing Operating Voltage allows equipment to continue operating safely
- Compact Design easy installation in service entrances, branch panels or sensitive electronic applications
Top product applications:
- Service Entrance Protection protecting equipment from damaging power surges entering the building
- Branch Panel Protection protecting equipment connected to a branch circuit or panelboard
- Sensitive Electronic Equipment Protection shielding sensitive electronic systems such as computers, telecommunications equipment and laboratory instrumentation from damaging power fluctuations
Technical Specifications
- Item Surge Protection Device
- Voltage 120/240V AC
- Phase 1
- Voltage Protection Rating 1200V (L-L), 700V (L-N)
- Max. Continuing Operating Voltage 150V AC
- Nominal Discharge Current 10 kA
- Modes of Protection L-L, L-N
- Mounting Location Externally Mounted
- Filtering No
- Modular No
- Amps 36 K
- Color Black
- Mounting Style Chase Nipple
- Enclosure NEMA Rating 4X
- Number of Poles 2
- Basic Material Nonmetallic
- Number of Wires 3 Wires
- System Connection Parallel
- Max. Surge Current per Phase 36 kA
- Short Circuit Current Rating 25kA
- Max. Surge Current per Mode 36kA
- UL SPD Type Type 1
- Joules 1,304
- Length 2.5 in
- Width 2.25 in
- Depth 2.7 in
- Enclosure Material Plastic
- Max. Operating Temp. 149 Degrees F
- Wire Gauge 14 AWG
- Includes LED Status Indicator
- Standards CSA C22.2 No 8, NEC 285 Type I, UL 1449:ed. 4 Type I
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: SDSA1175
- MPN: SDSA1175
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536308000
- GDS Category Name: Hardwire Surge Protection Devices
- GDS Family Name: Voltage Regulation
- GDS Segment Name: Electrical
- UNSPSC: 39121610
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 10
- UNSPSC Commodity Name: Surge suppressers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Voltage Regulation
