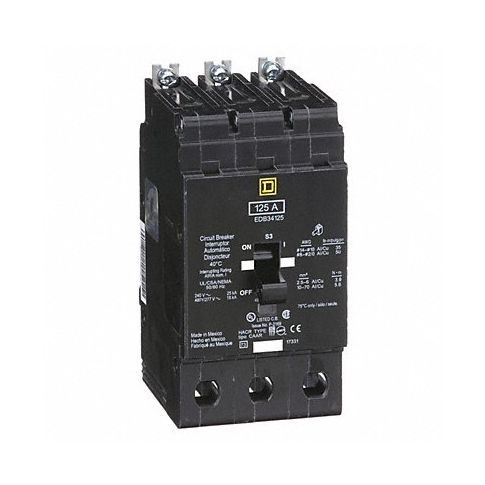

Circuit Breaker 125A Bolt On 277/480V 3P MPN:EDB34125
Free Shipping
In Stock
The Circuit Breaker 125A Bolt On 277/480V 3P from Square D is designed to offer superior protection in electrical systems where heavy currents are involved. This miniature circuit breaker interrupts currents when low-level faults are detected, ensuring that your system stays safe and secure. With a bolted installation in NF panelboards, this device is more stable than plug-in or unit-mount circuit breakers, making it ideal for industrial and commercial settings where durability is key. The lug orientation allows for straight-in wiring through bus bars, which helps to organize the load center and simplifies installation. With its three poles and standard rating, this circuit breaker is perfect for protecting three-phase systems or circuits with high amperages. Use it in a range of applications where reliability and safety are paramount, including manufacturing plants, data centers, hospitals, and more.
Top product features:
- Bolted installation for increased stability and durability
- Lug orientation for easy wiring through bus bars
- Interrupts currents when low-level faults are detected
Top product applications:
- Industrial settings with high energy consumption
- Data centers for backup power supply
- Commercial buildings to distribute electricity safely
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 125 A
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 125/250V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Three
- Series EDB
- Max. AIR Rating 18kA at 277/480V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 2.94 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 2 AWG
- Standards cULus
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB34125
- MPN: EDB34125
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC Category: Distribution
