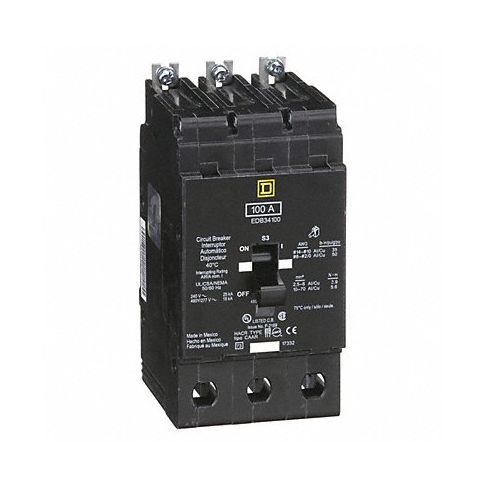

Circuit Breaker 100A Bolt On 277/480V 3P MPN:EDB34100
Free Shipping
In Stock
Introducing the Circuit Breaker 100A Bolt On from Square D, designed for stable connections in industrial and commercial settings. These miniature circuit breakers are bolted into place, offering superior stability compared to plug-in or unit-mount alternatives. They can handle low-level faults effectively by interrupting currents and provide a lug orientation that enables straightforward wiring through bus bars, eliminating the need for pigtail wires and organizing your load center. Equipped with an impressive amperage of 100A, this circuit breaker offers reliable protection for your electrical systems. With a voltage rating of 277/480V AC, it is suitable for a wide range of applications, making it the ideal choice for those seeking long-lasting and efficient circuit protection.
Top product features:
- Bolted connection for increased stability
- Interrupts currents upon detection of low-level faults
- Straight-in wiring through bus bars
Top product applications:
- Industrial settings requiring stable and reliable circuit protection
- Commercial environments that demand efficient fault interruption in electrical systems
- Installations where wiring space is limited and pigtailing isn't practical
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 100 A
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 125/250V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Three
- Series EDB
- Max. AIR Rating 18kA at 277/480V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 2.94 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 2 AWG
- Standards cULus
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB34100
- MPN: EDB34100
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:15pm UTC Category: Distribution
