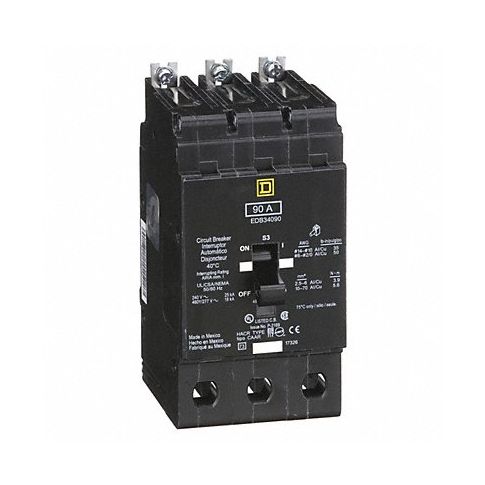

Circuit Breaker 90A Bolt On 277/480V 3P MPN:EDB34090
Free Shipping
In Stock
Introducing Square D's EBD and EGB series miniature circuit breakers designed for optimal safety and reliability in electrical systems. These versatile circuit breakers offer 90 Amps of current capacity and an AC voltage rating of 277/480V, making them suitable for a wide range of applications. Their bolt-on design ensures stable installation in NF panelboards, while their lug orientation allows for straight-in wiring through bus bars, eliminating the need for pigtail wires and promoting a clutter-free load center. Featuring standard circuit breaker type, these circuit breakers are ideal for use in commercial, industrial, and residential settings where low-level faults may occur. Experience the enhanced safety and efficiency of Square D's EBD and EGB series miniature circuit breakers the ultimate solution for modern electrical systems.
Top product features:
- Bolt-on installation for increased stability
- Lug orientation for straight-in wiring through bus bars
- Interrupts currents during low-level faults
Top product applications:
- Commercial electrical systems in offices, retail spaces, and warehouses
- Industrial settings, including manufacturing plants and factories
- Residential properties, such as single-family homes or multi-unit buildings
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 90 A
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 125/250V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Three
- Series EDB
- Max. AIR Rating 18kA at 277/480V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 2.94 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 2 AWG
- Standards cULus
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB34090
- MPN: EDB34090
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
