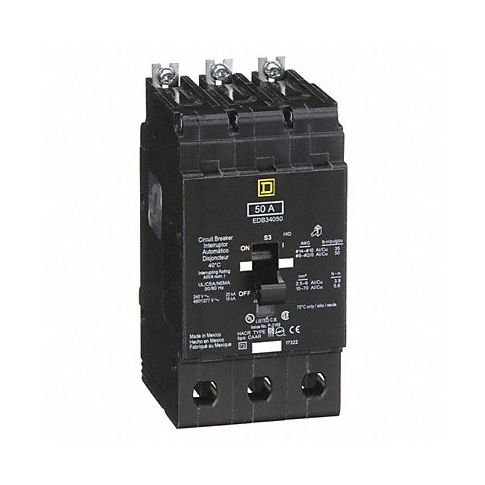

Circuit Breaker 50A Bolt On 277/480V 3P MPN:EDB34050
Free Shipping
In Stock
Introducing Square D's Circuit Breaker 50A Bolt On - perfect for industrial and commercial settings where safety and reliability are crucial! These circuit breakers have been designed to provide superior overload protection by detecting low-level faults in the circuit, ensuring your equipment operates at peak performance without any issues. Additionally, the bolted-in design provides increased stability compared to plug-in or unit-mount alternatives, making them ideal for NF panelboards. With their straight-in wiring feature through bus bars, you'll save time by eliminating pigtailing and organizing your load center more efficiently. Easy to install, this breaker offers 3 poles and voltage rating of 277/480V AC to handle a wide range of electrical demands. Invest in Square D's Circuit Breaker 50A Bolt On and ensure the safety and reliability of your electrical system today!
Top product features:
- Bolted-in design for increased stability
- Straight-in wiring through bus bars
- Interrupts currents when low-level faults are detected
Top product applications:
- Industrial settings for controlling power flow in electrical systems
- Commercial buildings for managing electricity distribution safely and efficiently
- Construction sites where portable electrical installations are necessary
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 50 A
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 125/250V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Three
- Series EDB
- Max. AIR Rating 18kA at 277/480V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 2.94 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 2 AWG
- Standards cULus
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB34050
- MPN: EDB34050
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC Category: Distribution
