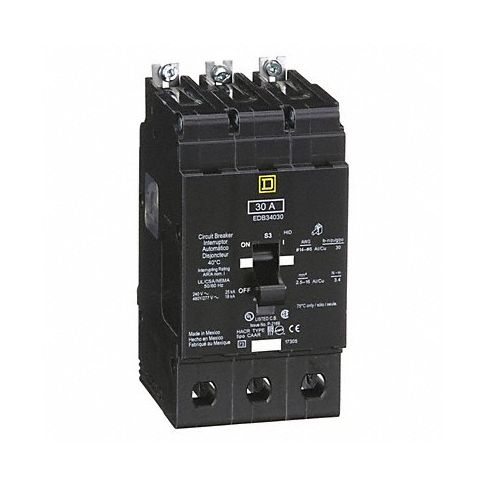

Circuit Breaker 30A Bolt On 277/480V 3P MPN:EDB34030
Free Shipping
In Stock
Introducing our Circuit Breaker 30A Bolt On 277/480V 3P from Square D - the perfect solution for safe and reliable circuit protection in commercial settings. This miniature circuit breaker is designed to be bolted into place in NF panelboards, providing superior stability compared to plug-in or unit-mount breakers. The EBD and EGB series technology used in this product enables it to detect low-level faults in the circuit and interrupt currents, ensuring maximum protection for your electrical system. Its lug orientation allows for straight-in wiring through bus bars, which simplifies installation and eliminates the need for pigtailing wires. With a 30A amperage rating and AC voltage rating of 277/480V, this circuit breaker is ideal for use in commercial buildings, office spaces, and industrial settings where high-level electrical protection is necessary. Choose Square D's Circuit Breaker 30A Bolt On 277/480V 3P for unbeatable performance and reliability.
Top product features:
- Bolt-on design for superior stability
- Detects and interrupts low-level faults in the circuit
- Lug orientation for straight-in wiring through bus bars
Top product applications:
- Use in commercial buildings to provide reliable circuit protection
- Use in industrial settings for equipment and machinery protection
- Use in office spaces to protect electrical wiring and appliances
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 30 A
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 125V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Three
- Series EDB
- Max. AIR Rating 18kA at 277/480V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 2.94 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 6 AWG
- Standards cULus
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB34030
- MPN: EDB34030
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
