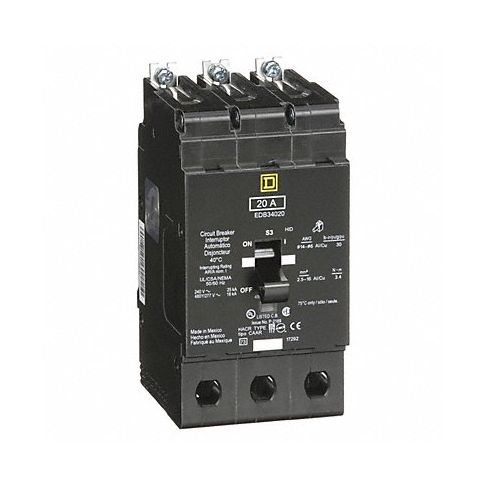

Circuit Breaker 20A Bolt On 277/480V 3P MPN:EDB34020
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-3TW38
Circuit Breaker 20A Bolt On 277/480V 3P
The Circuit Breaker 20A Bolt On 277/480V 3P from Square D is an ideal solution for your electrical needs. These miniature circuit breakers are stable, reliable, and designed to interrupt currents when low-level faults are detected in the circuit. With a capacity of 20 amps and voltage rating of 277/480V AC, they're perfect for use in NF panelboards. The lug orientation allows for easy wiring through bus bars, which helps organize the load center. Use them to protect your electrical system and ensure a safe installation.
Top product features:
- Stable design ensures long-lasting reliability
- Interrupts currents when low-level faults are detected enhances safety
- Straight-in wiring through bus bars simplifies installation process
Top product applications:
- Protection against electrical faults in panelboards
- Industrial settings for controlling power distribution
- Commercial installations to regulate circuit loads
These EBD and EGB series miniature circuit breakers are bolted into place in NF panelboards, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20 A
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 125V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Three
- Series EDB
- Max. AIR Rating 18kA at 277/480V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 2.94 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 6 AWG
- Standards cULus
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB34020
- MPN: EDB34020
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00PSN5M20
Product info last updated on November 17, 2023 12:18pm UTC Category: Distribution
