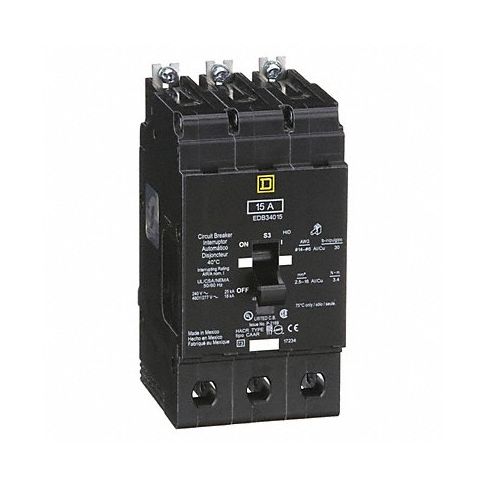

Circuit Breaker 15A Bolt On 277/480V 3P MPN:EDB34015
Free Shipping
In Stock
Introducing the new Circuit Breaker from Square D! This powerful yet compact device is perfect for busy electricians and DIY enthusiasts looking to protect their circuits against overloads, short circuits, and overcurrents. With a capacity of 15 amps and voltage ratings of 277/480V AC, it's ideal for use in commercial and residential settings where a reliable and efficient power source is essential. Its bolted-on design ensures maximum stability while its standard circuit breaker type makes it easy to identify and locate in your panel. Plus, with its three poles, you can safely protect multiple circuits at once, giving you peace of mind no matter how much current you're working with. Invest in the Circuit Breaker from Square D today and experience the difference a quality product can make!
Top product features:
- Bolt On Design for maximum stability
- Lug Orientation for easy wiring through bus bars
- Interrupts currents when low-level faults are detected
Top product applications:
- Protection of circuits in commercial and residential settings
- Use in electrical panelboards for stable and efficient power distribution
- Wiring through bus bars for easier organization of loads in the circuit
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 15 A
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 125V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Three
- Series EDB
- Max. AIR Rating 18kA at 277/480V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 2.94 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 6 AWG
- Standards cULus
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB34015
- MPN: EDB34015
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
